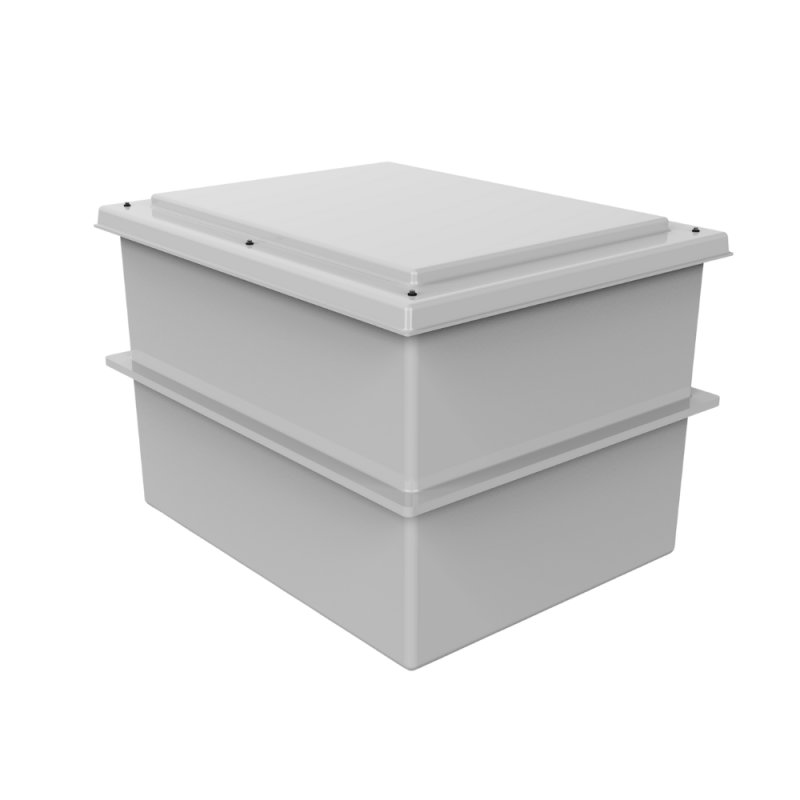

570 Litre GRP Water Tank - Two Piece Insulated

Product Ref: PW570-2

Water Made To Order GRP Non-returnable Yes Rectangular Customer Off Loading, Free Delivery Customer Off Loading, Free Delivery WRAS Approved

updown
from €1,488.55 ex VAT
(€1,830.92 inc VAT)

Product Description

Two piece 570 Litre GRP Water Tank - Insulated (25 mm) Full WRAS approval


Manufactured to meet BS7491 Parts 1 and 2, using the highest quality GRP materials, ensuring a long service life with minimal maintenance requirements. Grey colour as standard (other RAL or BS colours are available at additional cost). Only materials of the highest quality are used along with a highly efficient manufacturing processes. This combination ensures that these tanks are of the highest quality available.


All internal surfaces, including the lid, have an Isophthalic white gel coat layer which provides a clinical smooth surface which will not support the growth of microbiological organisms. This gel coat layer is reinforced by the main GRP laminate, which provides the main structure of the tank body. The materials used are of the highest quality and applied with exacting production standards to assist in prevention of osmotic blistering. Further reinforcement is provided by square section steel tubing with fully welded corner joints. Steel reinforcement ensures that the softening and general deterioration encountered with timber supports is avoided, thus providing full structural reinforcement for the life of the tank.


After the CFC free PU foam insulation and the steel reinforcement are fitted, the GRP outer skin is then applied. This ensures that both insulation and reinforcement are fully encapsulated and protected from external conditions. The whole tank is then coated with a tack free grey polyester gel coat layer. This ensures that the tanks are suitable for all locations and weather conditions, and can be located outdoors as standard. Where access is a limiting factor and our one piece GRP tanks are unsuitable, a two piece tank could do the trick. These tanks are manufactured in two or more horizontally split sections, which are then assembled once the restriction has passed. In a nutshell, a one piece tank in two or more bolt together sections.


All the components including sealant and fixings for the joint flange are supplied with the tank. The assembly of this range of products could not be easier and should not prove difficult for any competent mechanical services engineer. These two piece tanks allow utilization of the more cost-effective one-piece type tank format, where a considerably more expensive sectional tank would traditionally have been supplied.



The Encapsulated Baseboard will come moulded into the internal base of the tank to become part of the tank's construction and overall strength of the base. This will benefit the tank if it's on uneven surfaces or positioned on raised supports. It will not come supplied as a separate item


Optional steel water tank support Stand


  • Steel water tank support Stand suitable for raising the tank, allowing pump sets or other equipment to be positioned underneath.

  • Allows maximum use of the available footprint.

  • Increases the static head for applications where pressurised feed to equipment is advantageous.

  • Suitable for Two piece tanks.

  • Painted Grey Primer finish.

  • Manufactured in bolt up sections, allowing easy access and assembly

  • Supplied with ply boarding to provide a flat, solid surface for the tank base

  • 2600 x 1600 x 1100 mm (1000 mm clearance to underside)

  •


PW570-2 Dimensions

 Internal Dimensions (L x W x H)  990 x 760 x 760 mm
 External Dimensions (L x W x H)  1150 x 925 x 799 mm



Delivery

All our GRP tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle. Tank is non-returnable so please confirm order before processing.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

A large range of sizes are available - if you need a size that is not online, please contact our sales team.

Product Specification

  • Product Code: PW
  • Fuel Type: Water
  • Made To Order: Made To Order
  • Material: GRP
  • Non-returnable: Non-returnable
  • Potable: Yes
  • Shape: Rectangular
  • Shipping: Customer Off Loading, Free Delivery
  • WRAS Approved: WRAS Approved
  • Volume: 570ltr
  • Weight: 38.000kg
  • Dimensions: L:1150mm W:925mm H:799mm
