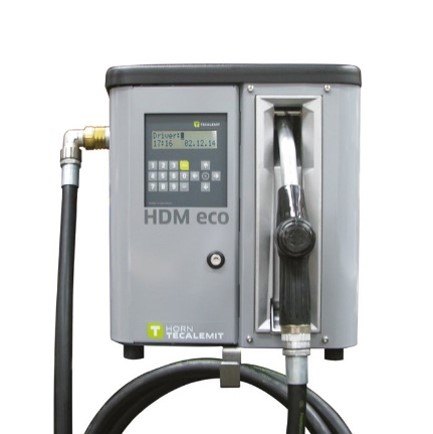

Tecalemit Diesel Dispensing Station HDM Eco Box - USB Version

TECALEMIT DIESEL DISPENSING STATION HDM ECO BOX

The HDM Eco Series is a high performance diesel dispenser and pumping system with an integrated fuel management system, specially developed for fleets and non-public filling stations. Designed for economy, reliability and simplicity of use, the HDM 60 Eco Box is manufactured to meet the needs of demanding applications and provides the operator with easy to read dispensed fuel data.
This fuel management system can be used by up to 2,000 different drivers and vehicles and its advanced technology using a USB interface enables the quick and easy transfer of data.
This diesel dispensing station is fast and reliable refueling. This fuel management systems safety features include drip tray and leak detection

The Tecalemit HDMC Fuel Management System is a German manufactured system with an already proven track record for being reliable. The system comprises of the HDA FM terminal fitted inside a compact fuel pump cabinet, that includes the PC software & USB stick to download the transactions from the terminal to your PC.

The HDMC is a fuel management system that allows you to have 2000 users and to also store 10,000 transactions before the need to download onto the PC software.

This fuel management system comes full equipped with pump, auto nozzle, 4m 1" hose and a 240v self-priming pump. The 240v comes in 2 options 50lpm or 85lpm depending on your site’s requirements.

The PC system allows the users to view: MPG reports, check the fuel use per vehicle/ driver, transaction totals, Information by date range, operator, or vehicle and much more.

Product Features:

• Pump options: 50lpm or 85lpm
• Supplied with 240v pump, 4m hose, professional auto nozzle & filter (HDA Key fobs not included)
• Fuel Management System to control 1 pump.
• Meter accuracy +/-0.5%. Continuously rated motor with thermal cut out.
• Weatherproof to IP54. Integral filter & bypass valve.
• Dimensions: 470mm H x 550mm W x 340mm D.
• Maximum number of users: 2,000.
• Stores up to 10,000 transactions before downloading is required.
• Download fuelling data to the PC software using the USB stick provided
• Can assign vehicle tags & driver codes or you can just use the tag on its own
• Vehicle tags are a proximity type. You can lock & unlock tags.
• Easy to operate override switch (need to open main door to locate).
• Preset amount in litres can be set for each vehicle.
• Connects to pump via existing pulser (Pulser can be supplied if required).
• Compatible with a pulse meter ratio between 1 ? 1000:1
• Odometer entry option, odometer maximum distance option.
• Messages can be sent for drivers & vehicles to the FM terminal.
• Weatherproof for outdoor use, suitable for wall or tank mounting.

Allows The User To View:

• MPG & litres per house reports.
• Fuel used per vehicle/driver.
• Vehicle groups or departments.
• Transaction totals.
• Information by selecting a date range.
• An operator by date or vehicle.
• An individual vehicle by date or operator.
• Important: Client PC Specification Windows XP, Vista, 7 & 8.
• 1 Year Warranty

Optional Extras:

• Tecalemit Transponder Fob
• Tecalemit Fill Level Probe
• K600 Pulse Meter

• Product Code: HY
• Fuel Type: Adblue, Biodiesel, Diesel, HVO
• Shipping: Free Delivery
• Weight: 29.000kg
• Dimensions: L:553mm W:380mm
