Lynx Power Bank 30-60

LYNX POWER BANK 30-60

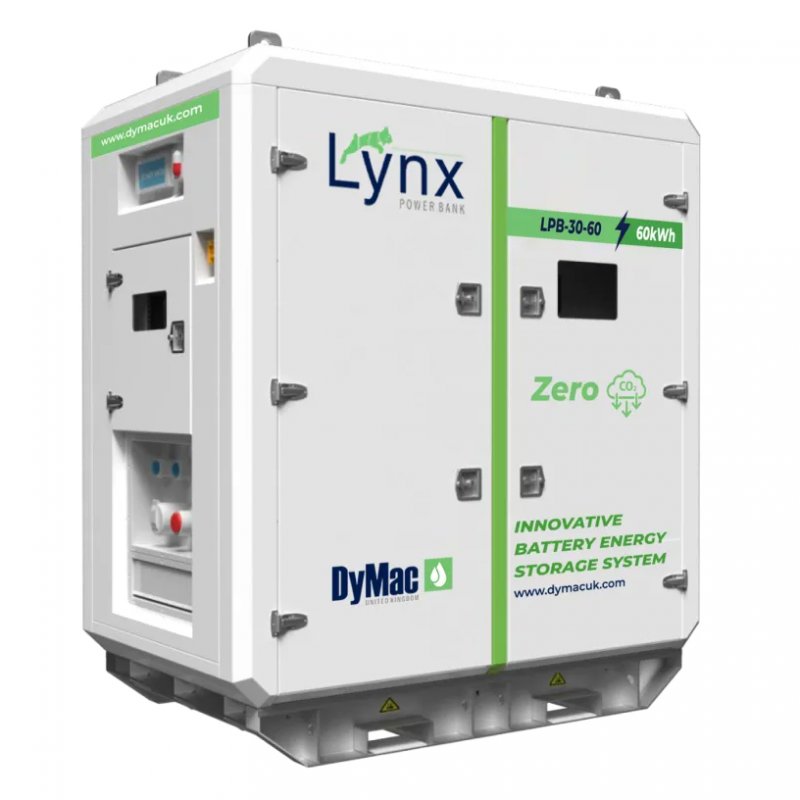

The Lynx Power Bank LPB-30/60 is a new range of secure integrated Battery Energy Storage Systems. This mobile and modular solution includes; Batteries, PCS, Cooling Fan and a Fire Protection System. External PV power connection point and AC Generator connection point as standard. It can be connected to an external PV power station, AC generator and grid power. LPB is mainly developed for zero emission and minimal noise. Reducing dependency on grid supply, with improved quality of power, to ensure available consumption during emergency loading.

Benefits:

• Integrated installation, convenient storage and transportation.
• An efficient, high return on investment.
• Simple operation and easy maintenance.
• Power and Capacity can be expanded.
• Various customization options

Standard Features:

• Rated Output Voltage - 380v-415v @ 50hz 3ph
• Gas Purity: >99.6%, Discharge Time: <10s, Backup Power: Yes
• Battery Storage Capacity - 61.44kwh
• Sockets Configurations - 6 X Cee 32a Single Phase, 1 X Cee 63a 3 Phases
• Visualization: LCD Screen & simple UI monitoring Power Source: PV/Wind/Grid/Genset Remotely accessible through APP/WEB
• LiPO4 batteries : Excellent Battery consistency Battery Performance: 6000 cycles (90% D.O.D)
• Generator/Grid Socket Connection: 1 X Cee 125a 3 Phases
• Automatic Fire Suppression System
• Temperature Control Device
• Touch Screen For Parameter Setting Requirements
• Rectangular Canopy: Dimension(L*W*H):2280mm*983mm*2007mm
• Weight: 1700kg

Battery Specification:

• Battery Type: Lfp
• Protection: Ip 20
• Life Cycle: >4000 @25°C 90% D.O.D
• Rated Capacity: 100ah
• Rated Voltage: 51.2v
• Quantity: 12 Pcs

Battery Management System (Bms)

• Short Circuit Protection
• Resistance Protection
• Overload Protection
• Overcharge Protection
• Over-Discharge Protection
• Under-Voltage Protection
• Over-Current Protection

Energy Management System

• Remote Display - Vrm Website
• Hardware Equipment - Cerbo Gx
• 4g Rtu - Lt220m

Inverter & Charger: Victron Quattro Inverter & Charger

• Bi-Directional Power Conversion System
• Grid-Support Functions
• Dc Coupled Solution
• Droop Control/Communication Control Functions
• 3 X 10kva Quattro 48v. Peak Power 60kw
• Frequency - 50hz / 60hz
• Cont. Output @25°C - 24kw
• Cont. Output @40°C - 19.5kw
• Cont. Output @65°C - 13.5kw
• Inverter Certificates - En-Iec 60335-1, En-Iec 60335-2- 29, En-Iec 62109-1

• Product Code: DY
• Guarantee: 3 Year
• Weight: 1700.000kg
• Dimensions: L:2280mm W:983mm H:2007mm
