CINTROPUR TRIO UV 25W WATER FILTER

CINTROPUR TRIO UV 25W WATER FILTER

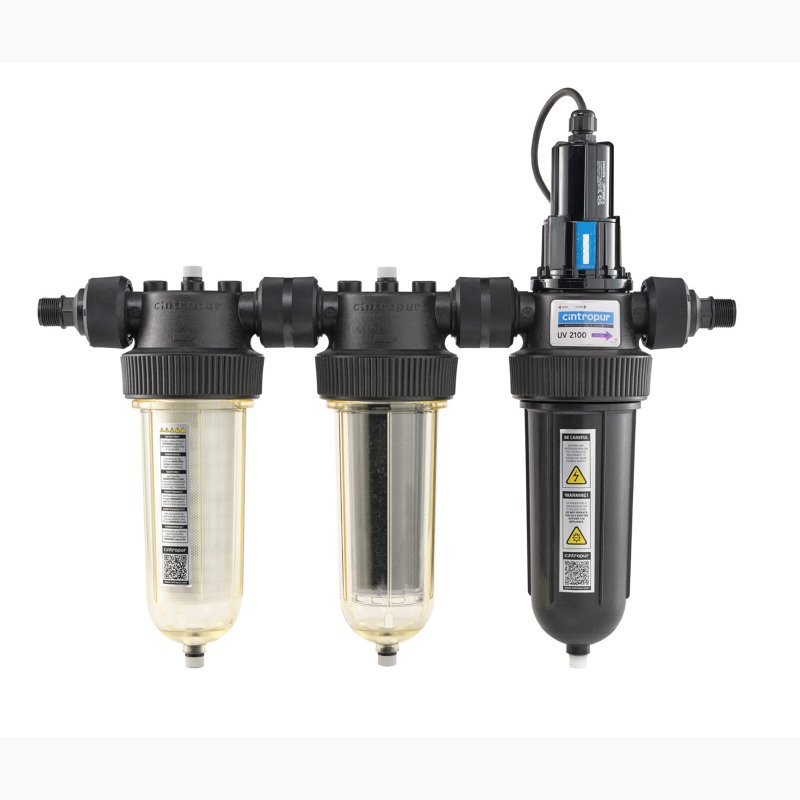

The Cintropur Trio UV water filter is a 3-function sterilizer: 25 µm filter, activated carbon treatment and sterilization with a UV lamp 25 W. Max. flow rate of 2 m³/h. This water filter filters water as The spiral structure of the filter generates a centrifugal force, which, in a cyclone effect, moves larger particles towards the bottom of the bowl. The remaining contaminants are then subject to fine filtration adaptable to particular needs, with filtering fineness ranging from 5 to 25 microns. The Trio water filter purifies as the treatment by activated carbon removes unpleasant tastes and odours, as well as pesticides and herbicides from the water. Activated carbon is contained in a separate holder for easy replacement. The activated carbon media can easily be replaced by screwing off the top cover. The Trio Water filter then sterilises by using UVc water sterilisation to ensure the bacteria-free quality of water. It will be particularly well suited to the full treatment of rainwater.

Thanks to its simplicity and efficiency, water sterilization by UV radiation has developed extensively in the recent years. UV radiation at 253.7 nm is part of the solar radiation, and is reproduced artificially. UVc radiation thus produced is of much greater intensity than sunlight – therefore suitable for water sterilization. This particular disinfection method is known as one demolishing legionella, microbes, bacteria, viruses and protozoa, while having no negative impacts on the environment. This is the ideal method to remove micro-organisms from water, and thus make it potable in terms of bacteriology. Water treated in this way cannot be regarded as of drinking quality unless its chemical properties are compliant to relevant standards.

Please note: Your UV sterilisation will not function efficiently unless the lamp is repalced once a year.

AREAS OF USE

• Residential baths and showers
• Food preparation jobs
• American refrigerators
• Chilled water fountains
• Aquariums
• Rinsing food
• Provision of livestock, e.g. chickens, rabbits, ducks, etc., with drinking water containing no pathogenic micro-organisms

APPLICATIONS– ORIGINS OF WATER

• Rainwater: UV-sterilization of rainwater will allow for a wider range of application and safe use.
• Drilling water, boreholes: UV-sterilization of well water will prevent any pathogenic contamination.
• Tap water: UV-sterilization of tap water will ensure premium quality water satisfying even the highest demands.
• Spring water, surface water: UV-sterilization of such waters will provide constant water quality in terms of bacteriology.
• Water stored in tanks (in caravans, boats, etc.) : UV-sterilization will preserve the healthiness of water kept in tanks.

ADVANTAGES:

• Easy installation and use
• 100% physical disinfection by means of UV sterilization
• Natural treatment of water without adding chemicals – thus eliminating the risk of overdosing
• No unpleasant tastes or odours in the water
• Proven effectiveness against micro-organisms imposing hazard on human health
• No toxic by-products will develop
• Reduced need for maintenance

SPECIFICATIONS:

• Connection diameter - 3/4" + 1"
• Max flow rate (m3/h) at 25 mj/cm2 - 2
• Max working pressure (bar) - 16
• Max temperature (°C) - 50
• Weight - 4.3kg
• Water transmission (minimum %) - 90
• Lamp power (w) - 25

• Product Code: PWG
• Fuel Type: Water
• Potable: Yes
• Shipping: Free Delivery
• Weight: 4.500kg
• Dimensions: L:610mm H:492mm
