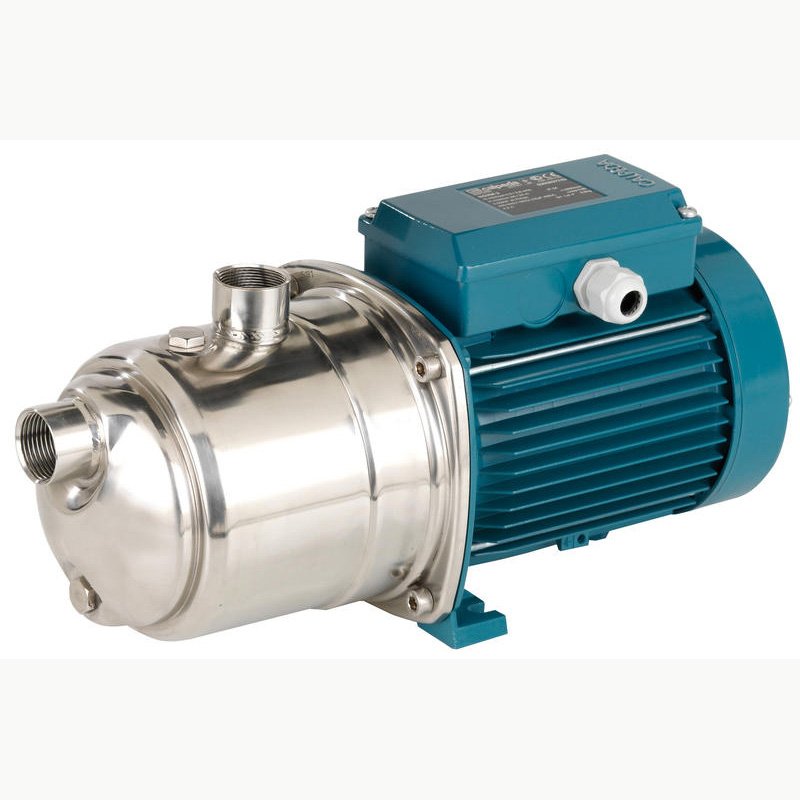

Calpeda MXP 203 Water Pump Max 32.5m Head 83.3L/Min

Calpeda MXP 203 Water Pump Max 32.5m Head 83.3L/Min

These clean water horizontal multi-stage centrifugal pumps with plastic impellers are suitable for water supply. This range of water pumps are universal pump, for domestic use, for civil and industrial applications, for garden use and irrigation. This water pump has a maximum head heigh of 32.5m with a maximum flow rate of 83.3 l/min.

Applications

• For water supply
• For domestic use
• For garden use and irrigation

Features

• Inlet G1" / outlet G1"
• Extra safety against running dry with suction port above pump axis
• Robust - single-piece, thick barrel casing
• Compact - single piece lantern bracket and base
• Low noise with the water-filled shroud around the stages

Operating conditions

• Liquid temperature from   0 °C to + 50 °C
• Ambient temperature up to 40 °C
• Maximum permissible pressure in the pump casing: 8 bar
• Continuous duty

Motor

• 2-pole induction motor, 50 Hz (n ≈ 2800 rpm)
• MXP:three-phase230/400 V ±10%  MXPM:single-phase 230 V ± 10%, with thermal protector
• Capacitor inside the terminal box
• Insulation class F. Protection IP 54
• Motor suitable for operation with frequency converter from 1,1 kW.
• IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW)
• Constructed in accordance with:EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.

• Product Code: CAL
• Fuel Type: Water
• Guarantee: 2 Year
• Shipping: Free Delivery
• Weight: 6.600kg, 6.700kg
• Dimensions: L:362mm W:161mm H:176mm
