BIODISC BB12 SEWAGE TREATMENT PLANT

BIODISC BB12 SEWAGE TREATMENT PLANT

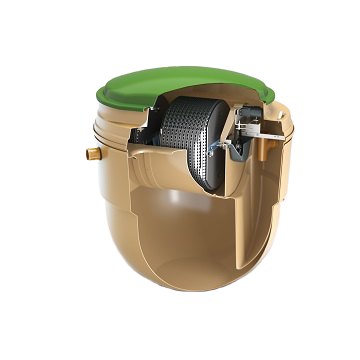

The Klargester Domestic BioDisc® is engineered to treat wastewater to a high standard and offers affordable lifetime costs compared to other treatment processes. For domestic dwellings without access to mains drainage, the BioDisc Sewage Treatment Plant provides a reliable, efficient and environmentally safe solution to your sewage disposal needs.  It is ideal for locations where discharge is to sub-surface irrigation, or to a suitable watercourse where approved by the Regulator, and where a septic tank will not meet the required standards. For added peace of mind, we offer an extended warranty period of 7 years* Terms and conditions apply please visit Warranty Terms. With strict Environment Agency standards, it’s more important than ever to choose a sewage treatment plant that delivers peace of mind with reliable treatment of wastewater.

Assured Performance

BioDisc is a high performance package treatment plant which, in normal domestic situations, will produce effluent qualities of better than 8mg/l BOD, 13mg/l SS and 4mg/l ammonia.

Features and benefits

• Pipework Diameter: 110mm
• Sludge Storage Period :12 months
• Low running and maintenance costs
• Utilises rotating biological contractor technology
• Low Noise in Operation
• Odour Free (to BS EN13725 standard)
• Low profile covers for minimal visual impact
• Invert options to match the site
• Control panel issues an immediate alert when a problem occurs
• Single phase standard power supply
• Optional integral pump available
• Assured performance of 10mg/l BOD, 15mg/l SS and 3.8mg/l ammonia
• 7 year warranty options available when purchased with a service and maintenance plan (T&C's apply)
• Certified to European Standard EN12566-3
• CE-marked
• Designed in compliance with the EPA Code of Practice

Breakdown Process

• Primary settlement tank: Wastewater and sewage flows into the primary settlement tank where the large solids are retained for future removal.
• First stage biological treatment: The liquor and fine solids then flow into the Biological Treatment Zone 1 where the first stage of treatment occurs.
• Second stage biological treatment: The liquor is then fed forward at a controlled rate into Biological Treatment Zone 2 for further treatment.
• Final settlement tank: The clean liquid passes into the final settlement tank where it can be discharged to ground or water course.

To find out more about the Klargester BioDisc click on Klargester BioDisc

Further sizes are available on request

To register your BioDisc click here

*DELIVERY TERMS

All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.

HIAB off-loading is available at extra cost, if requested.

It is the responsibility of the customer to inform us, if off-loading equipment is required.

WOULD YOU LIKE A SITE ASSESSMENT DONE?

Before you purchase your sewage treatment system you may need advice on which system is suitable. From percolation tests and site assessments to specifiying the correct sewage treatment plant for installation we can help you through the process. If you would like our help, please click on Site Assessment Report and fill out the form  and we can take it from there.

Kingspan offer a commissioning and maintenance service on all their wastewater products. Your service and maintenance visit will include; system integrity and operation, check of all moving parts, effluent quality, flow rates, discharge consents and management system checks. Kingspan are currently offer free comissioning valid within three month of purchase.

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested commissioning by Klargesters own trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

WHAT'S INCLUDED IN THE COMMISSIONING? CLICK HERE FOR MORE INFORMATION

For more information download the information below, call 0818 543 500 or go to Kingspan Service

• Product Code: KLA
• Fuel Type: Sewage
• Shape: Underground
• Shipping: Customer Off Loading, Free Delivery
• Weight: 335.000kg, 353.000kg, 402.000kg
• Dimensions: H:2340mm, H:2460mm, H:3140mm
• Diameter: 1995mm
