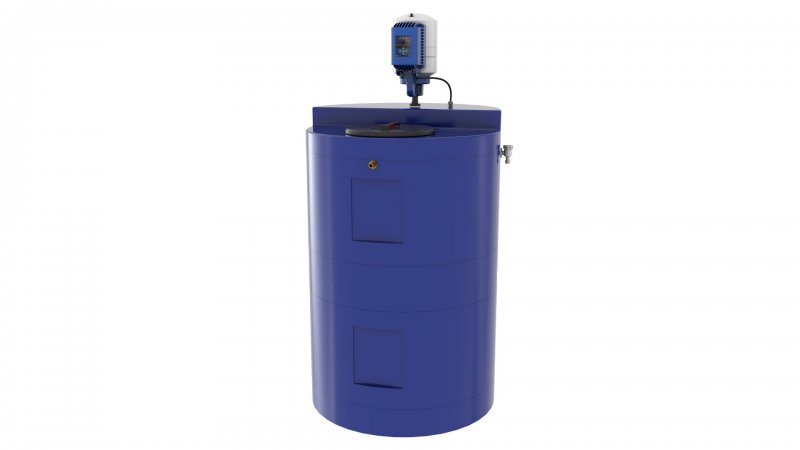

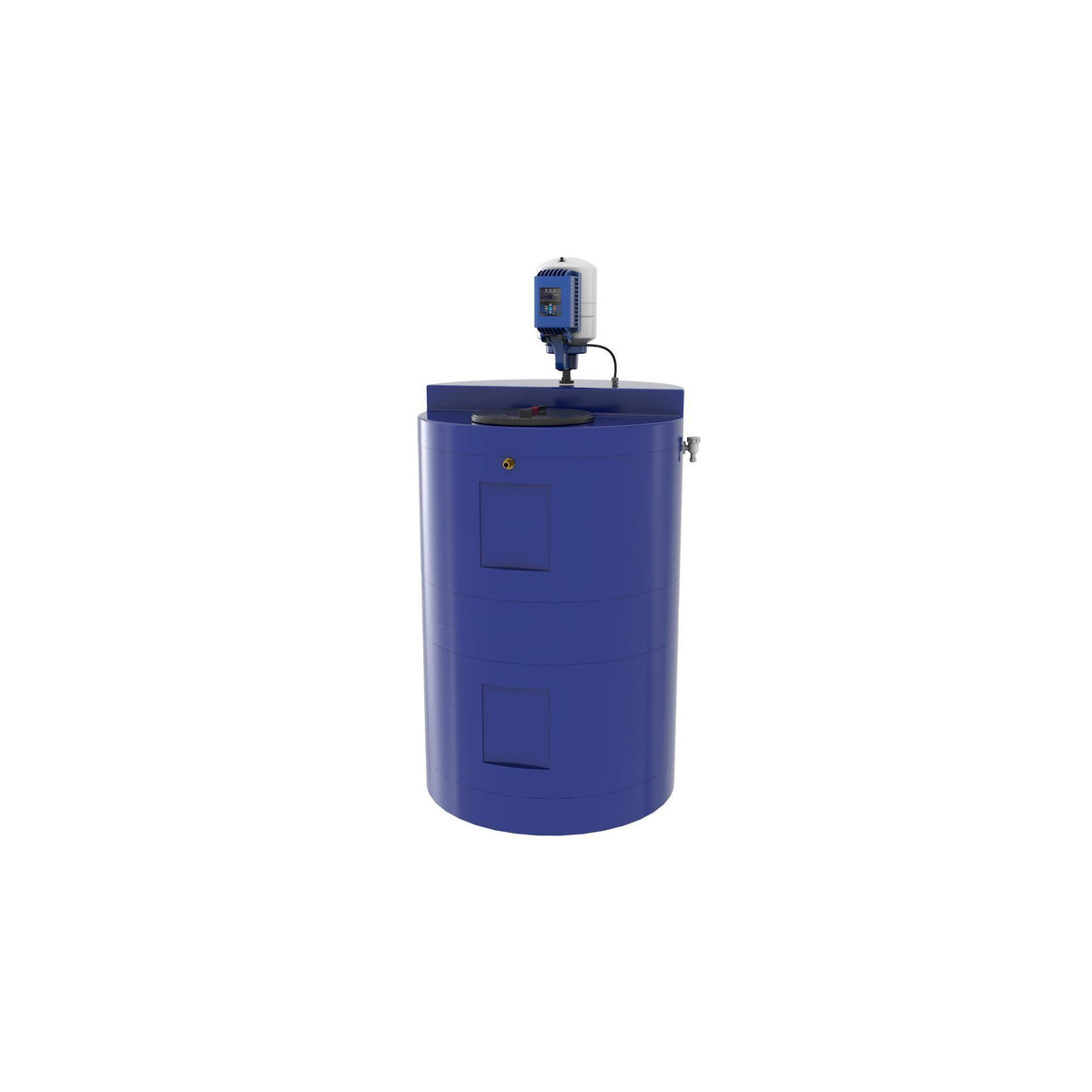

AQUAMAXX 1200L BOOSTER PUMP & TANK

Product Description

AQUAMAXX 1200L BOOSTER PUMP & TANK

The Aquamaxx has been specifically designed to supply potable water for smaller properties with low water pressure and flow where space is at a premium. Areas such as apartments, cottages and townhouses would benefit the most from a compact system. The Aquamaxx system arrives pre-assembled allowing for a fast installation.

The Aquamaxx Compact fits into the space of a standard kitchen unit as they are similar in size to a washing machine so can be hidden away behind a cupboard door. The electronic controller will automatically start and stop the pump when a drop in pressure is sensed i.e. a tap or outlet is opened and closed.

FEATURES

Non-corrosive holding tank (WRAS approved material)
Pre-fitted WRAS approved fill valve
WRAS approved submersible pump
Integral overflow weir
Minimal installation requirement
Digital display flow controller
Dry run protection with auto restart (time delay)
WRAS approved inverter and vessel
Comes in single and twin options

SYSTEM CONNECTIONS

Inlet: ½” BSP
Outlet : 1” BSP
Overflow: 22mm
Single or Twin Pump

SINGLE PUMP

Model Number	Mid Curve Flow	Mid Curve Pressure	kW Rating	Running Current (amp)	Supply Voltage	Inlet	Outlet	Overflow Size	Dry Weight

FV40/10T	40l/min	4.5 bar	0.75	3.8	1 ph 230v 50 hz	28mm	1"	40mm	74kg
FV40/15T	40l/min	6.5 bar	1.1	5.2	1 ph 230v 50 hz	28mm	1"	40mm	76kg
FV80/15T	60 l/min	4.5 bar	1.1	5.4	1 ph 230v 50 hz	28mm	1"	40mm	78kg
FV80/20T	60 l/min	5.8 bar	1.5	6.1	1 ph 230v 50 hz	28mm	1"	40mm	80kg

TWIN PUMP

Model Number	Mid Curve Flow	Mid Curve Pressure	kW Rating	Running Current (amp)	Supply Voltage	Inlet	Outlet	Overflow Size	Dry Weight

FV40/10T	80l/min	4.5 bar	2 x 0.75	2 x 3.8	1 ph 230v 50 hz	28mm	1 1/4"	40mm	94kg
FV40/15T	80l/min	6.5 bar	2 x 1.1	2 x 5.2	1 ph 230v 50 hz	28mm	1 1/4"	40mm	96kg
FV80/15T	120 l/min	4.5 bar	2 x 1.1	2 x 5.4	1 ph 230v 50 hz	28mm	1 1/4"	40mm	98kg
FV80/20T	120 l/min	5.8 bar	2 x 1.5	2 x 6.1	1 ph 230v 50 hz	28mm	1 1/4"	40mm	100kg

All Aquamaxx booster sets use the IDROGO submersible pump which comprises of a stainless steel outer casing and glass fibre reinforced PPE impellers. The IDROGO electric pump is reliable and corrosion resistant. This pump is suited to residential and light commercial applications and is easy to service and maintain.

KEY FEATURES

PPE+PS impeller with glass fibres
Stainless steel 431 shaft (EN 1.4057)
WRAS approved
AISI 304 outer casing
Carbon/ Ceramic/ Silicon/ NBR mechanical seal

Product Specification

Product Code: DPT
Fuel Type: Water
Material: MDPE
Shipping: Free Delivery
Twin or Single: Single, Twin
WRAS Approved: WRAS Approved Parts
Volume: 1200ltr
Weight: 100.000kg, 74.000kg, 76.000kg, 78.000kg, 80.000kg, 94.000kg, 96.000kg, 98.000kg
Dimensions: H:1370mm, H:1870mm
Diameter: 1000mm
