7500L Platin Eco-Plus Rainwater Harvesting System

7500L PLATIN ECO-PLUS RAINWATER HARVESTING SYSTEM

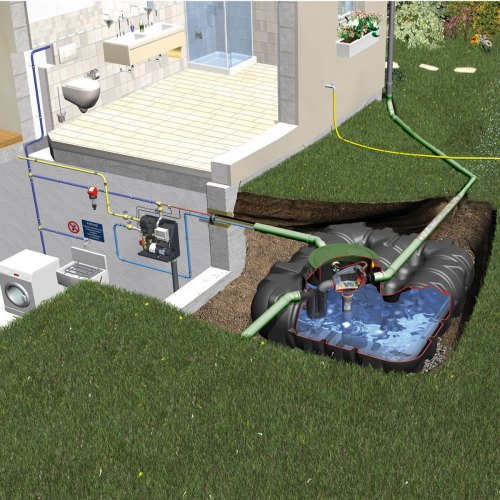

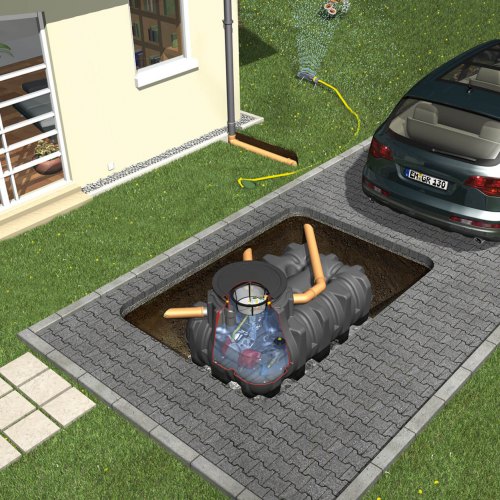

The 7500L Platin Eco-Plus rainwater Harvesting system is an underground rainwater system that is suitable for use with toilets, washing machines, garden watering, pressure washing and car washing. The Platin Eco-Plus Rainwater Harvesting System is a low cost complete solution for home and garden.


Benefits:

• Low cost complete solution
• Patented filter technology
• Switch to drinking water supply in the home when needed
• Easy to assemble due to the modular design
• Float switch controlled
• Only one cover visible on the surface

Comes with:

• Platin flat underground water tank
• Maxi dome shaft tank cover suitable for pedestrian loading
• Smooth telescopic adjustment from 445mm -755mm
• Filter package containing Minimax-pro internal self-cleaning filter, steady inflow pot, overflow siphon, Spannfix quick assembly sleeve
• Technical Package: Mains water feeding console 15/4, floating switch extraction, Wall duct DN 100, Labelling set, Suction pipe 25m,  Black & Green labelled RAINWATER

• Product Code: GRAF
• Potable: No
• Shape: Underground
• Shipping: Customer Off Loading, Free Delivery
• Volume: 7500ltr
• Weight: 360.000kg
• Dimensions: L:3600mm W:2250mm H:1565mm
