650L ABOVE GROUND MINI PUMPING STATION
Product Ref: AG650/S/6VX
Product Description
650L ABOVE GROUND MINI PUMPING STATION
The complete kit for use in areas where gravity flow is not available. This system is used for the transfer of sewage or waste water, all specially designed for easy installation.

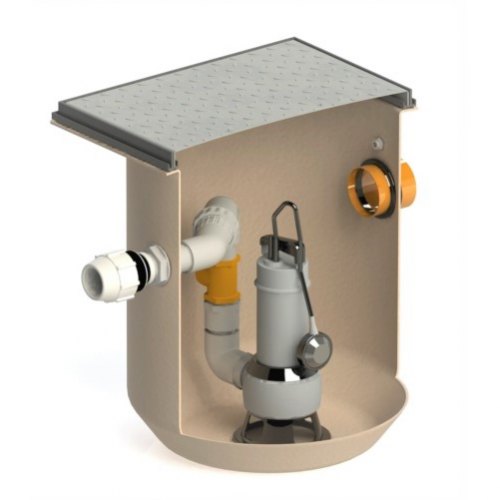

A small, compact sewage pumping station, suitable for cellars, extensions, garden rooms and small applications, consists of -
- Heavy duty Stainless Steel Submersible Sewage Pumps - available in 6m, 10m lift or Macerator.
- 50mm solid handling or macerator for peace of mind
- Complies to BS EN 12050-1:2001 / BS EN 752-6:1998 Standards
The 650 Litre Above ground GRP (glass reinforced plastic) Sewage pumping station can pump up to 100m across to mains.
Sewage Pumping Station includes:
- 50mm Solids sewage pump - 6m, 10m lift or macerator
- 1178mm x 721mm x 1009mm high grade GRP moulded basin (650Ltr)
- Soft close Non Return Valve
- Internal 2" PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
Model Ref | 6VX | 10VX | MC |
---|---|---|---|
Impeller Type | Vortex | Vortex | Macerator |
Power Supply | 230
~1ph~50hz |
230
~1ph~50hz |
230
~1ph~50hz |
Rated Power | 0.37kW | 0.75kW | 1.2kW |
Rated Current | 1.9A | 4.0A | 9.2A |
Max Head | 6m | 10m | 16m |
Max Flow Rate | 5.5l/s | 7.9l/s | 1.8l/s |
Cable Length | 10m | 10m | 10m |
Free Passage | 50mm | 50mm | Macerator |
