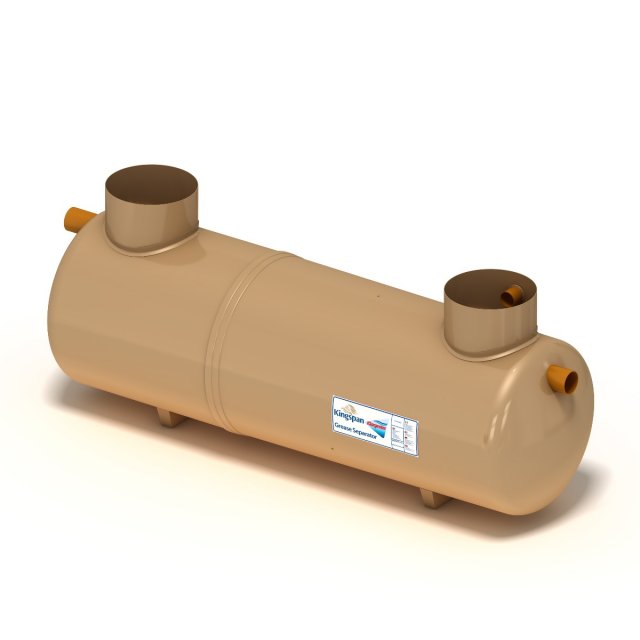

4000 Litre GREASE SEPARATOR

4000 Litre GREASE SEPARATOR

Klargester grease separators have been designed to effectively and hygienically separate fats, oils and grease (FOG) from wastewater flow and therefore into local sewer networks, preventing pollution and fines. These separators would be ideal for businesses preparing food for commercial consumption such as; hotels, hospitals, restaurant chains, canteens, university campus, public houses and other similar applications. Separators allow fats and grease to naturally separate out from waste water, allowing their removal prior to the drainage system. The separator should be installed close to the source of contamination before any foul waste can enter the drainage flow and to suit the expected liquid temperature.

Installation & Operations:

Klargester Grease separators are installed close to water outlets within the kitchen. When the wastewater from these outlets flows through the separator the FOG waste naturally separates from the water by floating to the top, therefore enabling removal before the water reaches the drainage system. Grease separators should be sized in accordance with EN1825 to ensure they are big enough to handle the flow and volume of FOG from your business. Please refer to the guide below and contact us if you need any further assistance.


Features and Benefits:

• 4000 Litre capacity
• Flow rate - 9 litres per second
• Standard invert of 500mm
• Weight Full: 3760kg
• Fall Across Unit: 70mm
• Greatly reduces drain blockages, for maximum operational efficiency
• Helps improve performance of septic tanks and field drains for best results
• Prevents contamination of small sewage treatment plants, reducing risk of breakdown
• Compliant with BS EN 1825-1
• Protects mains drainage system from grease blockages
• Prevents the release of FOG into the local sewage system, where build up can cause 'Fatbergs' and result in fines from Local Authorities

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested commissioning by Klargesters own trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

WHAT'S INCLUDED IN THE COMMISSIONING? CLICK HERE FOR MORE INFORMATION

*DELIVERY TERMS

All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.

HIAB off-loading is available at extra cost, if requested.

It is the responsibility of the customer to inform us, if off-loading equipment is required.


Service and Maintenance:

It is important that you properly manage your FOG collection and disposal to prevent local pollution and fines from Local Authorities. Kingspan have been developed a complete service and maintenance packages using their expert knowledge of FOG management to help keep your grease separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.

Lid not supplied as standard.

• Product Code: KLA
• Material: GRP
• Shape: Underground
• Shipping: Customer Off Loading, Free Delivery
• Volume: 4000ltr
• Weight: 190.000kg
• Dimensions: L:3895mm W:2940mm
• Diameter: 1200mm
