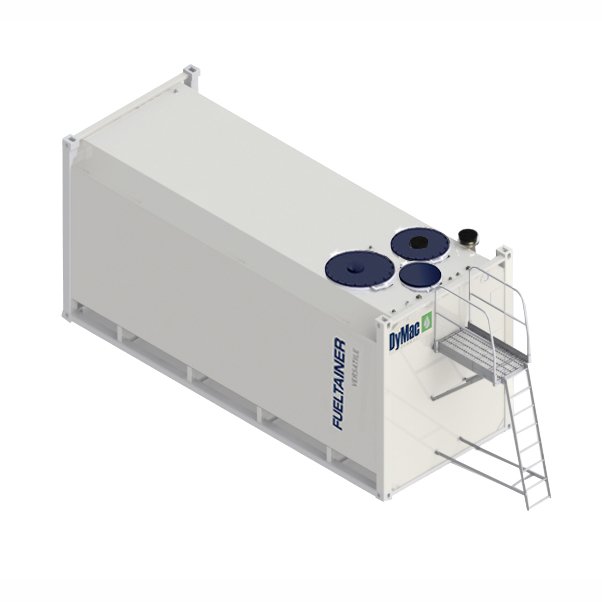

38000L FUELTAINER VERSATILE

38000L FUELTAINER VERSATILE

The FuelTainer Versatile is an ISO Bunded Container Tank Primarily Designed for the Storage of Bulk Fuel. The FuelTainers spacious design allows for the easy unfitting of various fuel management systems, suitable to meet the fuelling requirements of rental, construction, commercial, mining, military, and farming sectors worldwide. While well suited for static applications, the tank is portable when empty and can be easily adapted to support multiple applications making it the ideal choice for both large and small fuel distribution projects.

The FuelTainer Range is the go to fuelling solution across the construction, industrial and farming sectors and can be used for any number of direct fuelling applications, including providing bulk fuel supply to on-site water pumps or critical power generators. The range is widely used as a backup fuel source in emergency situations. Its flexible and innovative design allows it to be easily transported and it can be lifted while empty.The FuelTainer is the perfect choice for a secondary or standby fuel source as the innovative system design protects against spillage and fume evaporations or emissions through the valves and venting systems, making it the ideal choice for standby fuel storage on quarries, building sites or farms.

The Fueltainer is a double wall tank comes with a 6mm inner tank and 6mm outer protection tank and extra large equipment compartment area . The FuelTainer comes with a walk in bunded equipment compartment area, lockable pedestrian door and back plate bolted to full width rails for the fitting of dispensing pump and other accessories. The tank is stationary, and the Equipment Cabinet depth is 900mm and can securely store 20M of feed and return hose lines.


Suitable For:

• Equipment Rental
• Diesel Generator Power
• Municipalities
• Construction
• Fuel Distribution
• Mining
• Military Orgaisations

Specification

• Capacity - 38000 Litres, Useable Capacity - 37250 Litres
• Outer tank - 4mm
• Inner tank - 6mm
• Weight Empty - 13538 kg
• Fill Point Pipe Work, Valving And Connections
• Venting For Tank
• Access Ladder And Platform
• Calibrated Dipstick
• Anti-Syphon Valve

INCOMING FUEL PRODUCT PER COMPARTMENT

• Tanker Fill Point
• Fire-Safe Flange Ball Valve, Threaded Spigot And Cap
• Non-Return Valve
• Mechanical Overfill Valve
•  Internal Steel Pipe Work

OUTGOING FUEL / PRODUCT PER COMPARTMENT

• Anti-Syphon Valve (Foot Valve)
• Pipe Work Terminating Under Walkway
• 6-Inch Sockets In Both Manholes For The Mounting Of Submersible Pumps

LARGE EQUIPMENT COMPARTMENT

• Bunded Pump Bay Complete With Water / Product Drain Valves
• Internal Access For Hoses
• Access Ladder To Working Platform Included Within The 20ft Frame Design
• Front Earth Connections & Bund Ventilations
• Self-Bunded With External Tank And External Bund, Complete With Corner Castings
• Bsp Thread On Ports Except When Only Npt Is Possible With Ul Equipment Installed

Maintenance

The FuelTainer Bulk Container is guaranteed 110% bunded and comes with CSC, ISO, UL and ULC certifications. To support easy cleaning and maintenance the option of a completely removable inner tank is available.

Transportation

The secure lock down and twist features ensure that the FuelTainer range fits securely and safely onto large road trucks and shipping vessels making it suitable for easy worldwide deployment.

Dispensing

The FuelTainer ISO CSC 110% bunded container tank range is extremely adoptable and dynamic. The tank can be customised with up to five flow and return steel pipes, which can accommodate the same number of diesel generators at one time. It can also be equipped with a contemporary fuel management system, acting as an independent fuelling station when required.

Safety and Security

The FuelTainer is a shipping container styled tank, which incorporates heavy duty lockable door handles and a twist and lock device, to ensure it is securely fastened during both short and long distance travel (empty shipping only).

Approvals & Certifications

• Lifting when empty
• UL142
• ULC S601
• CSC
• ISO688
• AS1940
• AS1692 CAT.3

If you have any specific requirements, please let us know and we can specify accordingly.

Price is ex-works from Co. Dublin. Delivery to site can be arranged at an additional cost. Please talk to our sales team to discuss delivery options.

• Product Code: DYM
• Fuel Type: Diesel, Gas Oil, Heating Oil, HVO
• Guarantee: 3 Year
• Volume: 37250ltr
• Weight: 7720.000kg
• Dimensions: L:6058mm W:2438mm H:2896mm
