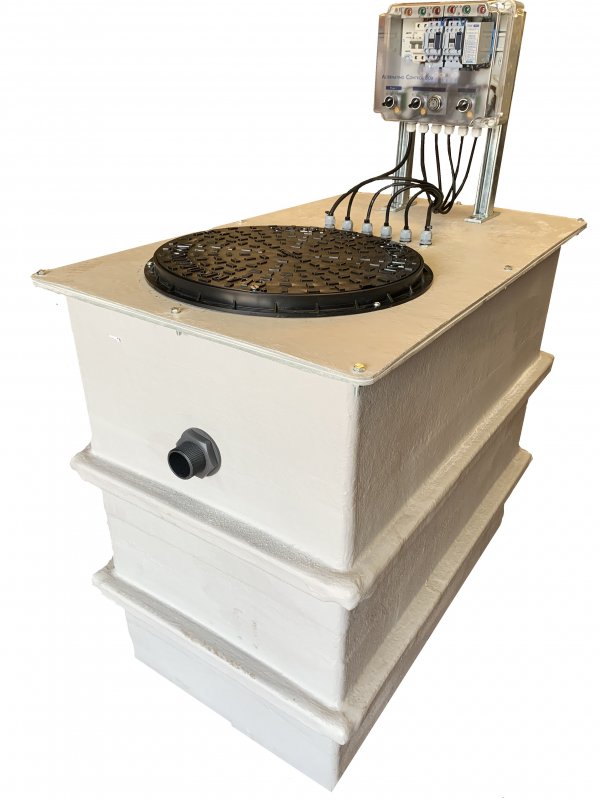

2501L TWIN ABOVE GROUND MINI PUMPING STATION

Product Description

2500L TWIN ABOVE GROUND MINI PUMPING STATION

This twin mini pumping station is a complete kit for use in areas where gravity flow is not available and the pumping station must be stored above ground or excavation is not an option. This system is used for the transfer of sewage or waste water, all specially designed for easy installation.

A small, compact sewage pumping station, suitable for cellars, extensions, garden rooms and small applications, consists of -

Heavy duty Stainless Steel Submersible Sewage Pumps - available in 6m, 10m lift or Macerator.
50mm solid handling or macerator for peace of mind
Complies to BS EN 12050-1:2001 / BS EN 752-6:1998 Standards

The 570 Litre Above Ground GRP (glass reinforced plastic) Twin Sewage pumping station can pump up to 100m across to mains. The system is designed to pump through 63mm pump main as the outlet terminates in 2" male thread.

Sewage Pumping Station includes:

2 x 50mm Solids sewage pump - 6m, 10m lift or macerator
Twin Control Panel c/w high level alarm
1125mm x 625mm x 509mm high grade GRP moulded basin (570Ltr)
Soft close Non Return Valve
Internal 2" PVC (class C) discharge pipe work kit
Seal for incoming and outgoing pipework (4" & 2")
12 months warranty

Model Ref	6VX	10VX	MC
Impeller Type	Vortex	Vortex	Macerator
Power Supply	230~1ph~50hz	230~1ph~50hz	230~1ph~50hz
Rated Power	0.37kW	0.75kW	1.2kW
Rated Current	1.9A	4.0A	9.2A
Max Head	6m	10m	16m
Max Flow Rate	5.5 l/s	7.9 l/s	1.8 l/s
Cable Length	10m	10m	10m
Free Passage	50mm	50mm	Macerator

Product Specification

Product Code: DPT
Fuel Type: Sewage
Material: GRP
Shape: Above Ground
Shipping: Free Delivery
Twin or Single: Twin
Volume: 2500ltr
Dimensions: L:2094mm W:1094mm H:1343mm
