130000L GALVANISED STEEL WATER TANK

130,000L GALVANISED STEEL WATER TANK

This 130,000 Litres Galvanised Steel Water Tank is a corrugated Galvanized steel water tank designed specifically to hold large quantities of water. The steel is approved to BS2989:1982 and is galvanized with lead free zinc to 275g/m² to EN10142. There is a minimum safety margin of 40% - this means that the structural strength of the tank is capable of holding a minimum of 40% more than the tanks actual volume. (It is not capable of holding more than the stated volume). The tanks are extremely strong and look aesthetically very pleasing.


Advantages:

• Very Strong
• Easy to install
• Key design is flexibility of footprint and capacity - can be fitted into an existing plant/ civil layout
• Photographic instruction manual provided
• Cost effective solution to storing large quantities of water
• Many sizes available - from 1.5m³ to 2000m³ and can also be supplied as linked tanks in a modular systems
• Just two people can assemble
• Portable, simple to move and reassemble
• Effective - supplied in kit form for minimized transportation costs
• Covers to suit any application: galvanised steel (with two hatches) or anti algae woven polypropylene
• Minimum in-built 20% safety margin (40% for the TK range)
• 10 Year Warranty on panels and liners

Applications:

• Storage of drinking water for emergency humanitarian aid
• Rainwater harvesting for the recycling of water
• Irrigation water for horticulture, nurseries and garden centres
• Irrigation water for sports playing surfaces
• Tanks for aquaculture
• Dust suppression
• Attenuation Tanks
• Storage of water for dust suppression systems
• Grey water storage

Included EPDM Liner:

Greenseal EPDM Irrigation Tank Lining Material 0.75mm – 1.00mm is a flexible robust material with excellent cut through, abrasion and UV resistance. EPDM offers a strong and more cost-efficient option than Butyl.

• Colour: Matt Black
• Abrasion Resistance: Excellent
• Chemical Resistance: Good
• Cut Through Resistance: Excellent
• Flexibility: Very Flexible
• Temperature Resistance: Very Good
• UV Resistance: Excellent
• Repair with Glue & patch

Other Options (please contact us for further information)

• Various outlet options
• Various inlet valve options
• Access Ladder and Handrail Kit
• Pipe enclosures
• Platforms
• Cast iron flanged gate valves

Please request a quotation for specific Fire Water Tank in this size.

Tanks comes with all steel panels, nuts, bolts and washers, anchor kit, top and bottom tank capping, wire, strainer and EPDM liner as standard

Fire and Rescue Service Support Tanks (FRST)

These tank systems provide additional water storage capacity available as quick release hydrant outlet directly from the tank or locally positioned hydrants on the site.

The capacity required is defined by Fire Officers Site Risk Assessment and relates to the duration and flow rate required to support hydrant servicing fire engine or hose reels on site.

Water from the tank is drawn by suction pumps either on board the appliance (to replenish inbuilt tank on the tender) or on site.

The tank incorporates a vortex inhibitor system with maximum flow on standard 4” 110 mm hydrant outlets of 50.0 LPS - Litres / Sec (Higher Flow Rates by special design)

Site Certification and Licensing

The FRST tank provision assists with overall specification within the FRS Risk Assessment and allows Fire Certification by FO and Operational Licenses for the site by Local Authority and Environment Agency Site

Basic Tank Specification for FRST

• Basic Galvanised Steel Tank and Roof / Cover – 1.0 mm EPDM Liner – 4” DN100 Hydrant outlet- Vortex Inhibitor. Cast Iron Gate Valve. Liquid Level Indicator.
• Configured for site water fill requirements.
• Optional Powder Coating Finish
• Tank supplied with 10 year Warranty and Certificate of Conformity

Commonly supplied in 50,000 to 500,000 litres sizes.

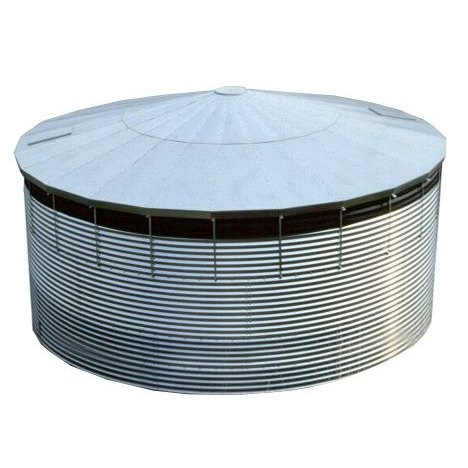

Please note image of tank is for illustration purposes only

Delivery 3-4 weeks

• Product Code: EV
• Made To Order: Made To Order
• Non-returnable: Non-returnable
• Potable: No
• Shape: Cylindrical
• Shipping: Customer Off Loading, Free Delivery
• Volume: 130100ltr
• Dimensions: H:2.29mm
• Diameter: 9.14mm
