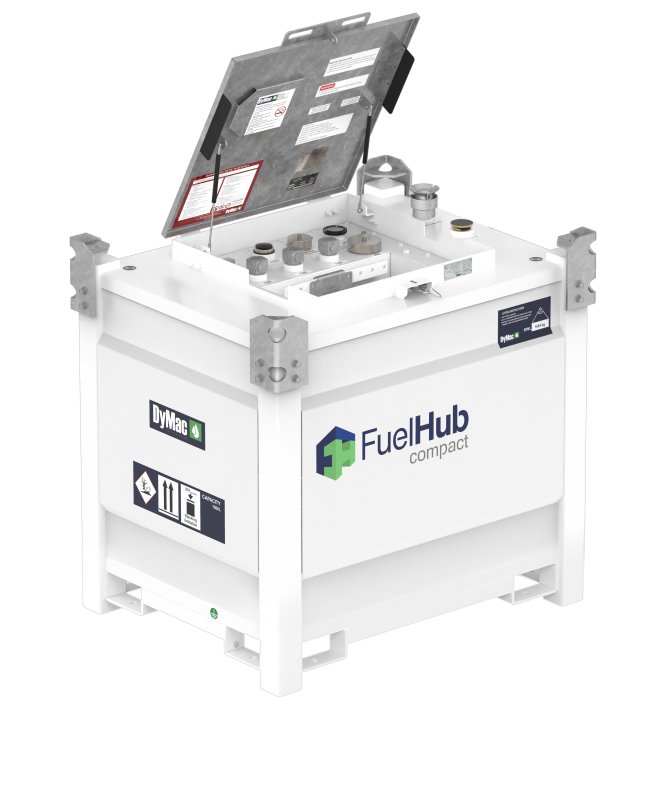

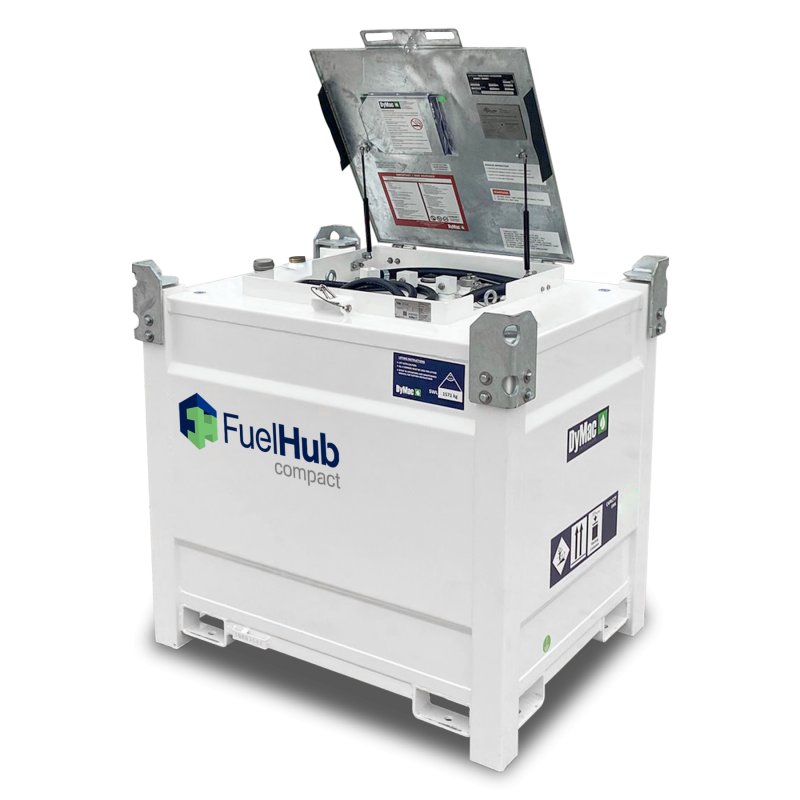

1000L FUEL HUB COMPACT

1000L FUEL HUB COMPACT

The FUEL HUB Compact Range of steel bunded storage tanks is designed for transportable and stationary use on medium to large scale refuelling applications. The Fuel Hub is an IBC transportable fuel storage tank which is 110% bunded. It also features a large secondary hatch lid opening. The Fuel Hub double wall tanks are designed as integral secondary containment and does not require independent bunds for spill containment. The desing of the Duel Hub ensures a fast, easy and convenient installation in any loction, indoors or outdoors. The Cube-style tank desing allows for 360 degree tank viewing and inspection. A high-grade paint finish ensures longer durability in the elements.

The Fuel Hub Compact tank has been designed with bi-directional forklift pockets for ease of manouverability on site and comes with 4 stacking corners with lifting lugs. Along with the conveniently positioned ports and fittings, there is a recessed equipment compartment area for the fitting of a 12V pump. This tank range is ideal for quick connection to generators and pump sets.

Specification:

• 2" Pressure Vent
• 2" Spare
• 1/4" Emergency Vent
• 1" Feed Down Pipe with Foot Valve
• 1/2" Feed Down Pipe with Foot Valve
• 2" Breather Socket
• 3" Fill
• 2" Interstitial Vent
• 1/8" Pump Antisiphon
• Level Gauge
• 2" Fill Vent/ Dipstick
• 4mm inner tank, 4mm outer tank
• 5 Year Warranty
• Dimensions: 1370mm L x 1085mm W x 1270mm H
• Weight empty 613kg
• Nominal capacity - 1000L, Safe fuel fill level - 965L

Approvals & Certifications:

• ULC S601 Compliant design
• UL 142 Compliant design
• UN 31 A/Y Compliant design

Dispensing Equipment Option comes with:-

• 12V/24V Diesel Electric Pump
• 4m x 1" Delivery Hose
• Automatic 56 lpm Dispensing Nozzle
• 2m Power Cable with positive and negative battery clips
• Digital Flow meter
• Inline particle and water separator filter

• Product Code: DY
• Colour: White
• Fuel Type: Diesel, Gas Oil, HVO
• Guarantee: 5 Year
• Shape: Above Ground, Rectangular
• Shipping: Customer Off Loading
• Volume: 975ltr
• Weight: 613.000kg
• Dimensions: L:1370mm W:1085mm H:1270mm
