Calpeda GQR 10-16 Submersible Drainage Pump (1 1/2" Vertical Port)

Product Description

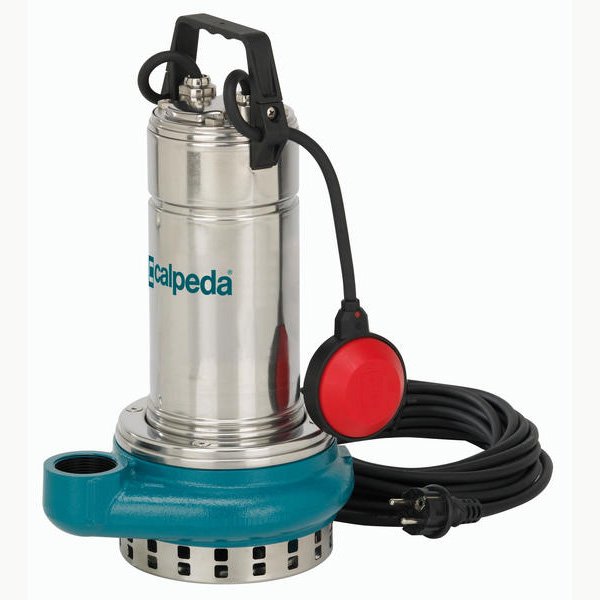

Calpeda GQR 10-16 Submersible Drainage Pump

The Calpeda GQR submersible drainage pump is a sinlge-impeller submersible drainage pump with a vertical delivery port with an open impeller. It has a double mechanical shaft seal with interposed oil chamber to protect against dry-running. This drainage pump has a maximum head height of 16m with a maximum pumping rate of 450 l/min.

Applications

For clean water containing solids up to 10 mm grain size
For draining rooms or or emptying tanks
Extraction of water from ponds, streams or pits and for rainwater collection
For irrigation purposes

Features

Cable length 10 m, pump single-phase with plug
Easy inspection of the capacitor area
Ring against accidental extraction of the cable
Handle in polypropylene, with frame in stainless stee
Easy adjustment of the float switch: to allow the adjustement of start/stop pump levels
The double shaft seal with oil chamber separates the motor from the water and provides further protection against accidental operation when dry
Chamber with food/pharmaceutical machinery oil
Relief valve: the pump is fitted to a relief valve for air release around the impeller granting a proper pump priming also after long standstill period
G 1 1/2 vertical, upward delivery port for installation in small pits, without the need for an elbow on the pump
Pump casing with epoxy cataphoresis treatment joined to the external paint for a greater protection against the rust
Shaft in chrome-nickel stainless steel
Suction strainer with a double row of holes, for extra safety against clogging:it allows the passage of solids up to 10 mm
Impeller with epoxy cataphoresis treatment for a greater protection against the rust
Phase 3 pump does not come with a float switch - please click on options to add control panel and float switch

Operating conditions

Liquid temperature up to 35° C
Maximum immersion depth: 5 m
Minimum immersion depth: 205 mm
Continuous duty (with submerged motor)

Motor

2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
GQR:three-phase 230 V ± 10%; three-phase 400 V ± 10%;. Cable:H07RN-F, 4G1 mm2, length10 m, without plug.
GQRM:single-phase 230 V ± 10%, with float switch and thermal protector. Incorporated capacitor. Cable:H07RN-F, 3G1 mm2, length10 m, with plug CEI-UNEL 47166.
Insulation class F.
Protection IP X8 (for continuous immersion) Triple impregnation humidity-proof dry winding.
Constructed in accordance with:EN 60034-1; EN 60335-1, EN 60335-2-41.

curve_gqr

Product Specification

Product Code: CAL
Fuel Type: Grey Water, Sewage
Guarantee: 2 Year
Outlet Size: 1 1/2
Shipping: Free Delivery
Weight: 16.000kg, 18.000kg
Dimensions: L:190mm W:247mm H:430mm
