W1-020 WASHDOWN SEPARATOR

W1-020 WASHDOWN SEPARATORS

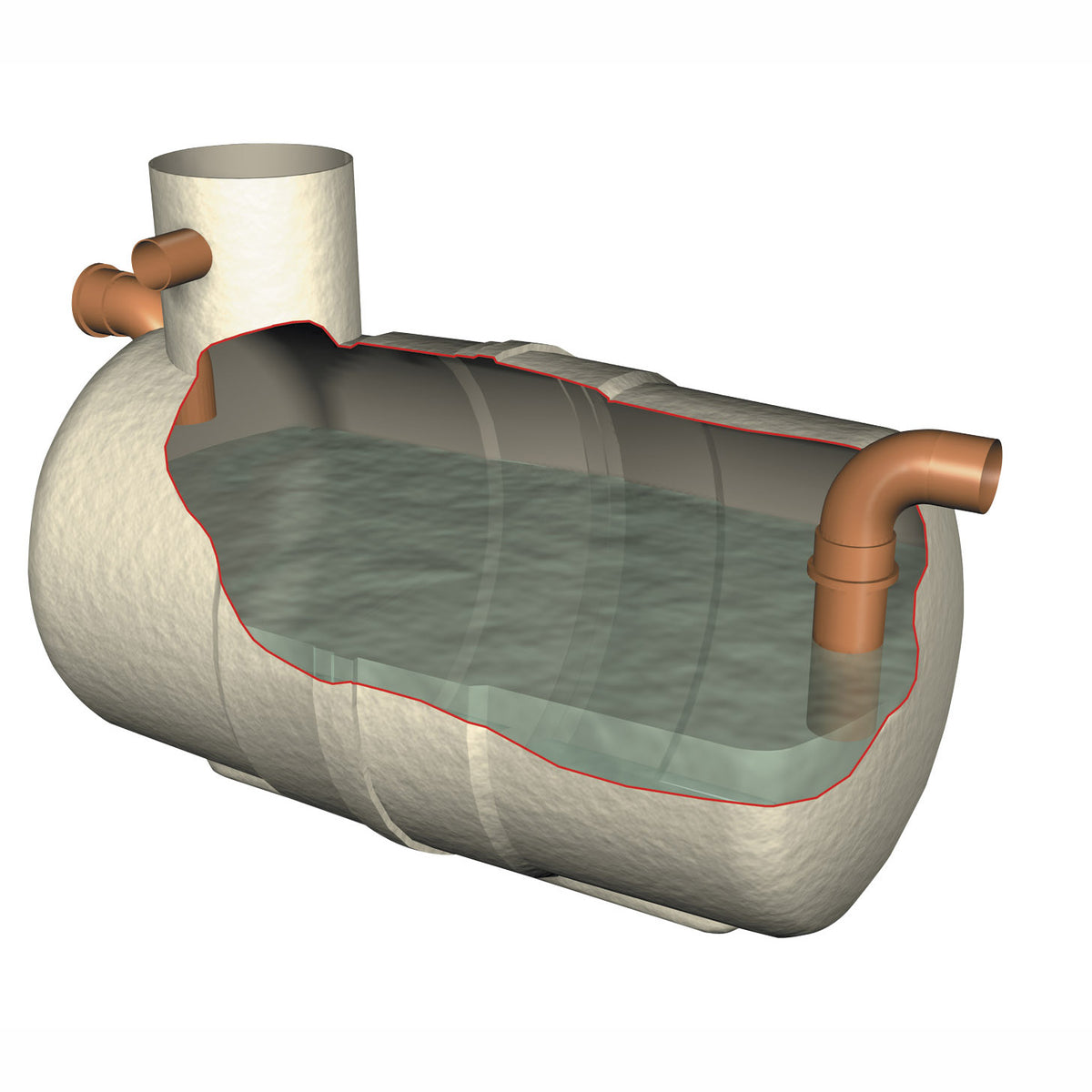

The Klargester W1-020 Washdown Separator can be used in areas such as car wash and other cleaning facilities that discharge directly into a foul drain, which feeds into a treatment facility. Such wash down facilities must not be allowed to discharge directly into surface water but must be directed to a foul connection leading to a municipal treatment works as they utilise emulsifiers, soaps and detergents to dissolve and disperse oils.


Uses:

• Car Wash
• Tool hire depots
• Truck cleansing
• Construction compounds cleansing points

Features:

• Light and easy to install
• Inclusive of silt storage volume
• Fitted inlet/outlet connectors
• Vent points within necks
• Extension access shafts for deep inverts
• Maintenance from ground level

Specifications:

• Suitable for 1-5 cars or 1-2 lorries per day
• Capacity: 2000 litres
• Maximum rec silt: 1000
• Maximum Flow Rate: 5 litres per second
• Access shaft diameter: 460mm
• Base to inlet invert: 1150mm
• Base to outlet invert: 1100mm
• Standard fall across unit: 50mm
• Minimum inlet invert: 500mm
• Standard pipework diameter: 160mm

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested commissioning by Klargesters own trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

WHAT'S INCLUDED IN THE COMMISSIONING? CLICK HERE FOR MORE INFORMATION

*DELIVERY TERMS

All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.

HIAB off-loading is available at extra cost, if requested.

It is the responsibility of the customer to inform us, if off-loading equipment is required.


Service and Maintenance:

It is essential that you ensure your separator is properly serviced and maintained to remain compliant with EN 858-1 standard and prevent pollution due to blockages. Kingspan's service and maintenance packages have been developed using their expert knowledge of their separators to help keep your separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.
