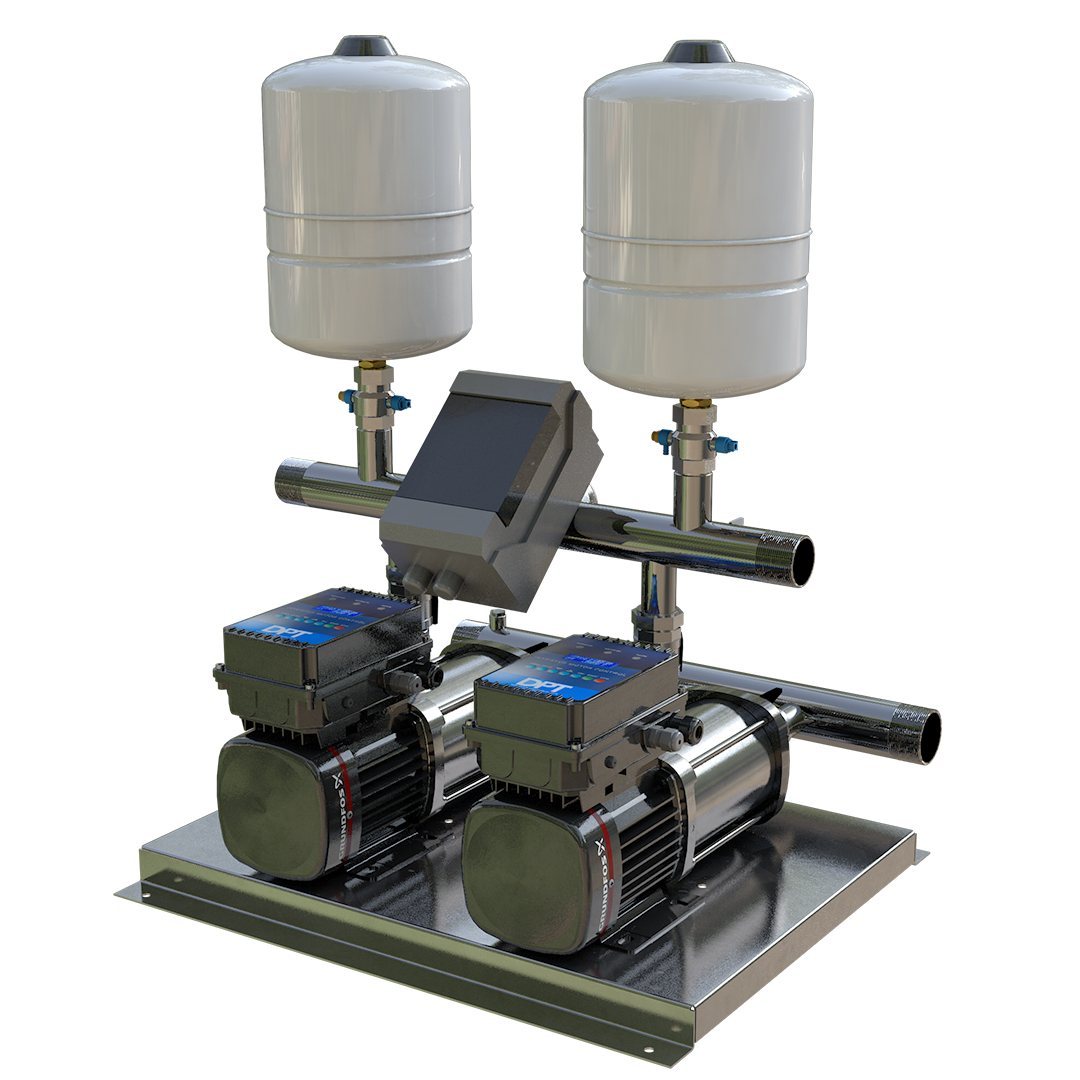

Vari-Rs Featuring Grundfos Twin booster Pump With TD Variable Speed Controller, 250L/MIN @ 4.5 BAR
Cold water booster pump set for improving mains water pressure in domestic and commercial properties.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Direct Pumps & Tanks
What makes this BAR the right choice?
Vari-Rs Twin 10-3 Grundfos booster Pump With TD Variable Speed Controller
250L/MIN @ 4.5 BAR
The Vari-RS Booster Set featuring the Grundfos Pump is a compact and cost-effective cold water booster set ideal for residential, commercial, and industrial applications and is designed to be a high performance solution for applications were the mains water pressure is not sufficient for the buildings requirements. The Vari-RS Booster Set includes variable speed inverters, Grundfos pump motors, all manifolds, vessels, and advanced features normally found on larger booster sets including fault signals and an error code display as standard. The Vari-RS is fully WRAS approved.
The booster pump comes fully assembled with valves, manifolds (twin and triple sets only), transducers, pump(s) and inverters. Mounted on a steel baseplate (twin and triple only).
Applications:
- Commercial Sites
- Multiple residential properties
- Industrial sites
- Agricultural & farming
- Manufacturing
Product Features:
- Choice of single, twin, or triple booster set configurations
- Anti-vibration mounts to reduce noise
- Error code display for fault diagnostics
- High-efficiency motors for long life and optimal operation
- Huge choice of tanks to meet every need
- WRAS-approved Grundfos Horizontal pumps
- Variable speed inverters
- WRAS approved expansion vessel
Specification:
- Pump Configuration: Twin
- Mid-curve Flow rate l/m: 330
- Mid-curve Pressure (bar): 3.8
- 2 1/2" connections
Technical data
Full specifications
| Physical | |
| L × W × H | 69 × 64 × 90 cm |
| L × W × H (mm) | 689 × 640 × 900 |
| Reference | |
| SKU | 2RS10-3/8/GF |
| EDEL code | EDELP00002097 |
