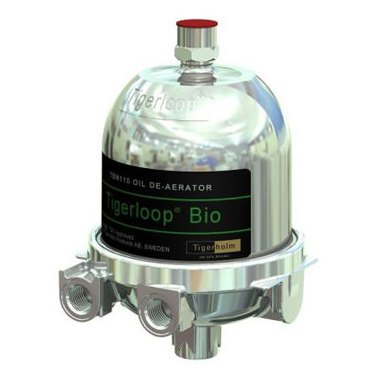

TIGERLOOP BIO

TIGERLOOP BIO

The new and improved third generation automatic oil de-aerator.

The Tigerloop Bio pre-heats the oil to at least room temperature by absorbing the heat from the boiler room and friction heat from the oil pump.

The Tigerloop Bio is used in combination with a separate oil filter.

The benefits of Tigerloop are applicable anywhere you use a light oil burner. The Tigerloop Bio is designed to be compatible not only with standard mineral fuels like C2 Kerosene and class D gas oil but also bio-liquids and bio liquid/ mineral fuel blends up to B100

• Suitable for indoor installation.
• Eliminate the risk of leakage in the return line.
• Reduce the flow of fuel, preserve quality of oil.
• Less dirts/sludge transported in the system.
• Better combustion, reduces oil consumption.
• Solve the problem of nozzle dripping causing soot build up.
• Provides the best possible operating conditions for pump.
• Satisfied customers / reduces call backs.
• The installers save time and money (easier installation).

Specifications:

• Max. nozzle capacity: 90 LPH
• Max. return oil pumped into Tigerloop: 100 lph
• Max. oil flow: 190 lph
• Operating Temperature: -6 deg - 70 degF
• Max. Ambient Temperature: 70 degF
• Max. operating pressure in feed line: -.06 to +0.5 bar
• Connections: 1/4"-NPT (F)
• Fuel type: Nos. 1 & 2, B5 BioHeat Biofuel
