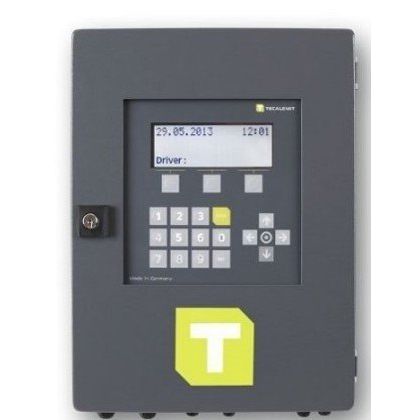

Tecalemit HDA 5 Eco For up to 5 Dispensing Points
This system can connect to existing or new fuel pumps (240v AC), The only additional requirement will be a pulse output from the pump.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Hytek GB Ltd
What makes this Points the right choice?
Tecalemit HDA 5 Eco For up to 5 Dispensing Points
If you require a free, no obligation virtual demo of the Fuel Management and online system, please click here.
The Tecalemit HDA Fuel Management System is a German-manufactured fuel management system for non-public filling stations, with an already proven track record for being reliable. This system can connect to existing or new fuel pumps (240v AC), The only additional requirement will be a pulse output from the pump.
This fuel management system can have up to 4,000 users per machine and can store up to 10,000 transactions before any download will be required. Downloading the data is very simple and is stored on the PC software, simply use the USB stick provided.
Full technical support and setup is offered to ensure a flawless and easy journey with your new fuel management system. A simple questionnaire is sent to the customer on purchase, asking a few questions to ensure any setup and calibration is completed before delivery so you can wire and start using immediately with ease. There is no need for lengthy instruction manuals and confusing jargon.
Comes supplied with a lockable casing for extra security.
If you require a free no obligation virtual DEMO if the Fuel Management and online system please click here
Product Features:
- UBS management software (Windows)
- Can be used with upto 5 dispensing points.
- Gives dispensing access to authorised users.
- Data Export in CSV and PDF report publishing
- Can be used up to 4000 users.
- Storage Capacity: 10,000 Dispensations
- Non-calibratable
- Integrated transponder reader
- Integrated USB connection
- USB flash drive for convenient transfer of data
- Incl. PC Software HD Manager eco for the processing of dispensation data
- Robust metal housing
- Key fobs to be purchased as optional extras
- IP54 weatherproof, wall or tank mountable
- Dimensions: 330mm H x 305mm W x 150mm D
- 1 Year warranty
**Please note a pulse meter will be required to link the pump and unit together**
Optional Extras:
- Pulse meter
- 4-20mA level probe
- Tecalemit Transponder Fobs
Ongoing costs after year 1
- Main site cloud based software management hosting & SIM contract fee - 24 months
- If the unit only is chosen there will be no SIM costs as no modem is required as this downloads data using the USB download stick provided with cloud software.
- Hosting & SIM charges are included for year one, after year one a 24 months contract is available (HDAC2YR) that keeps the FMS cloud software updated & continued remote support
Technical data
Full specifications
| Reference | |
| SKU | HDA5 |
| EDEL code | EDELP00183251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
