What makes this TIMER the right choice?

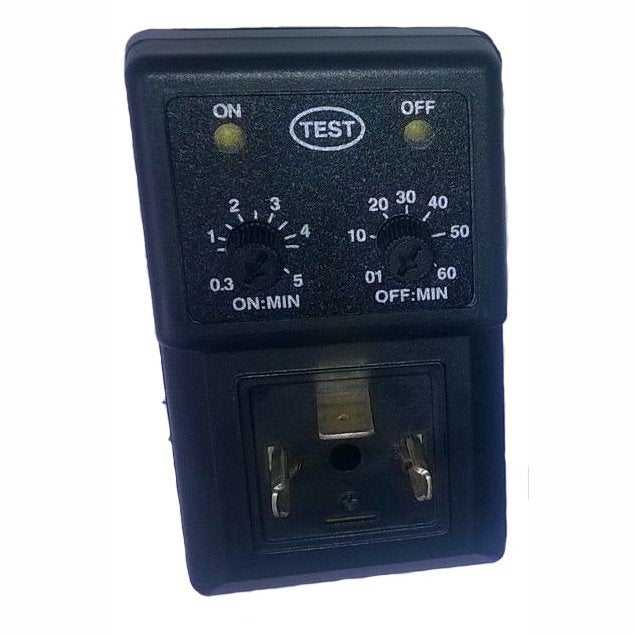

Solenoid Valve Programmable Cycle Timer
Programmable Timer for use with most Solenoid valves , programmable On & Off to cycle over a period of set times, fully automatic and easy to install
This time is able to cycle between Off cycle: 0.5 to 10 seconds, 0.5 to 45 minutes, 0.5 to 60 minutes and 25 to 150 minute and On cycle: 0.5 to 10 seconds, 0.25 to 5 minutes, 0.5 to 10 minutes and 0.5 to 45 minutes.
When main power is removed the timer will automatically reset once mails power is returned.
Supply Voltage 110v - 240v. AC/DC - 50/60Hz
Weight: 80 grams
Enclosure: IP65 with Connector
3 spades DIN 43650
USED IN BIOFICIENT AND DELTA UNITS.
Technical data
Full specifications
| Reference | |
| SKU | 0015228 |
| EDEL code | DELIVERY |
