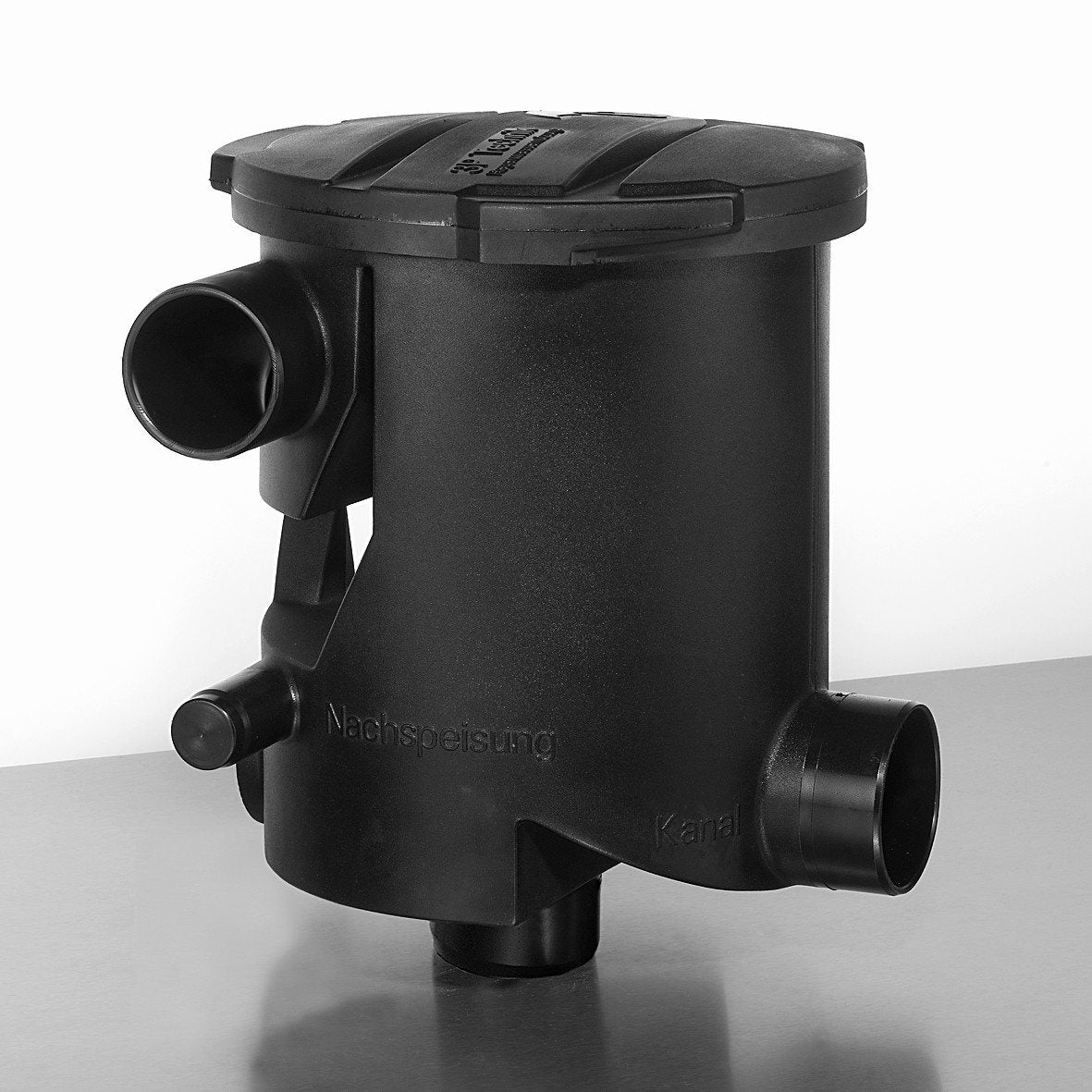

RAIN STORE FILTER

RAIN STORE FILTER


This rainwater filter can be used for installation within rainwater tanks or before the tank.

The high level of rainwater filtering efficiency is due to it's two step cleaning system, independent of flow rate. Due to the steep inclination of the rainwater filter cartridge, the dirt is continuously cleaned away into the sewer.

This rainwater filter is frost resistant and self cleaning. The rain water filter should be cleaned 1-2 times per year. The rainwater filter insert is easily removed for cleaning and does not have to be changed.

Connection capacity for roof areas up to 450m2 with a height difference between the inlet and outlet of just 300mm.

The cleaned rain water can be used in washing machines, toilet flushing and garden watering, in homes, in commerce, in public industry and in industry.

How it works:-

1. As water flows through the inlet the level builds up and is equally distributed across the cascade.
2. The largest dirt particles flow over the primary filter directly to the sewer.
3. The pre-filtered water then flows over the secondary filter sieve. Due to the special mesh structure of the sieve, any dirt washes directly into the sewer which means the filter is self cleaning, with very low maintenance.
4. Cleaned water flows to the water storage tank.
5. Dirt passes to waste.
