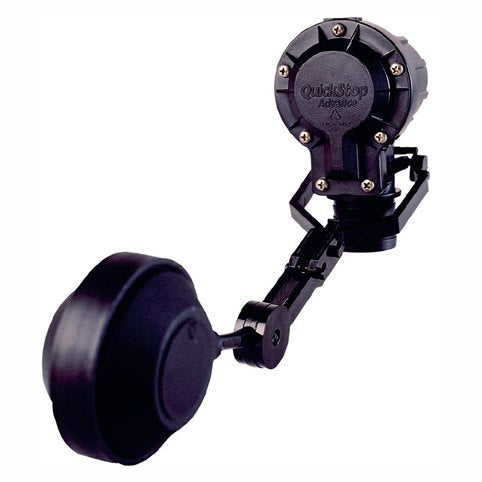

QUICKSTOP ADVANCE FLOAT VALVE

QUICKSTOP ADVANCE FLOAT VALVE

The QuickStop Advance float valve is designed as an alternative to conventional ballcock valves in water tanks to protect booster pumps. The Quickstop Advance goes instantly from fully open to fully closed, preventing repeated stop/start cycling of pumps when filling tanks or cisterns. QuickStop plastic float valve has a very high flow rate allowing rapid filling with minimal pressure loss.

This is a fully adjustable water valve; the Locking lever (at the center hinge) easily sets the minimum and maximum tank liquid levels and the length of the float arm can be simply adjusted too giving you great flexibility from 0 to 180o. The adjustable arm has 6 different settings enabling you to lengthen the arm up to 60mm. This Quickstop Advance float valve be used in water tanks, toilet cisterns, roof tanks, header tanks instead of a ballcock and float valve. When water is drawn from the tank, the QuickStop has a delayed re-start level of approximately 3cm, which further reduces the stop/start frequency of the pump. QuickStop float valves are hydraulic water level regulators with a hydraulically operated closure.

Available in to suit 3/4' or 1' pipework.

Specification:

• Operating Pressure: 0.2 to 6 bar
• Max Pressure: 10 bar
• Bursting Pressure: >20 bar
• Operation: Continuous
• Operating Temperature: 0 to 50oC
• Float Movement Range: 0 to 180o
• Float Arm Adjustment: upto 60mm (6 settings)
• CE Mark
