PIUSI VISCOMAT 70 LUBE OIL PUMP
PIUSI VISCOMAT 70 LUBE OIL PUMP
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Rotech Ltd
What makes this PUMP the right choice?

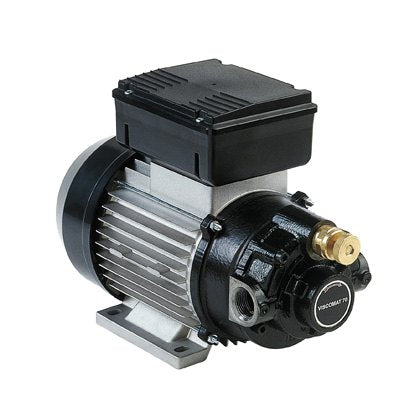

PIUSI VISCOMAT 70 LUBE OIL PUMP
Electric vane oil pump for transferring medium-viscosity oils up to 500cSt, with high flow-rate.
The Piusi Viscomat 70 Vane oil transfer pump has been designed to transfer large quantities of oil at medium pressure between tanks. This Piusi pump also guarantees good flow rates at high pressure, in applications in which the oil pump must supply hose reels for fixed oil distribution systems. Common features of all Viscomat oil transfer pumps include quiet operation (less than 70dB), smooth flow characterised by the absence of pulsations, closed-delivery operation thanks to the incorporated adjustable bypass, high suction capacity and compact design.
Performance:-
- Flow-rate 25 l/min
- Pressure up to 6 bar
- Continuous operation
- Noise level less than 70dB
- 230 volt Single Phase
- 1' BSP
- Viscosity up to 500cSt
- Self priming pump
- Maximum fluid temperature of 70c
- 1' threaded connections with NPT Flanges
- Protection Grade: IP55
- Adjustable Bypass Valve
- Continuous Running
Technical data
Full specifications
| Physical | |
| Empty weight | 14 kg |
| Reference | |
| SKU | 0334900 |
| EDEL code | EDELP00195357 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
