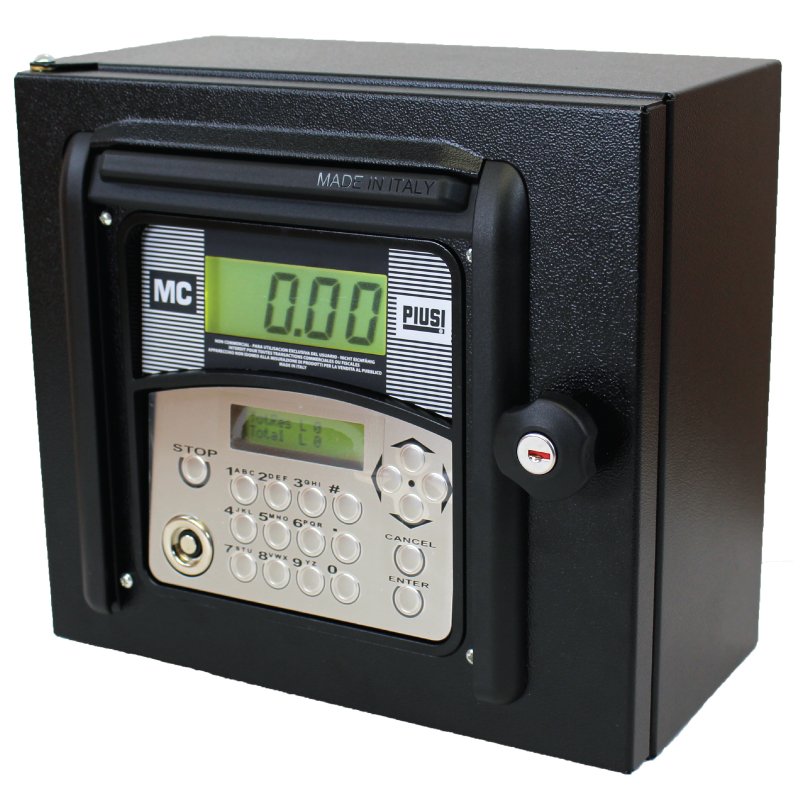

PIUSI MC BOX SYSTEM

PIUSI MC BOX SYSTEM
This fuel management system intelligent design allows the unit to be easily connected or added to both new and existing fuel transfer pumps providing low cost, simple, easy to use fuel management.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Rotech Ltd
What makes this SYSTEM the right choice?
PIUSI MC BOX SYSTEM
The MC box fuel panel has the capability to control and manage the consumption of fuel for the private and commercial sector. This fuel management system intelligent design allows the unit to be easily connected or added to both new and existing fuel transfer pumps providing low cost, simple, easy to use fuel management.
The control panel has the ability to:
- Switch a pump on/off
- Recognize authorised users by means of i-button key or pin code
- Pre-set a quantity to dispense
- Manage a pulse meter to measure quantity dispensed
- Manage an external level switch to control pump operation on low level
- Operate an external nozzle switch
- Connect to a PC for exporting data files
- Connect to an external printer
- The system is easy to install and has excellent weather resistance.
Technical data
Full specifications
| Physical | |
| Empty weight | 5 kg |
| Reference | |
| SKU | F13980000 |
| EDEL code | EDELP00195357 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
