PIUSI K600/3 OIL FLOW METER
PIUSI K600/3 OIL FLOW METER
The meter is equipped with an integrated filter.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Rotech Ltd
What makes this METER the right choice?
PIUSI K600/3 OIL FLOW METER

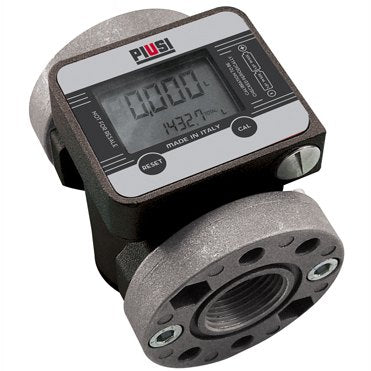

The PIUSI K600/3 is an oval gear meter suitable for measuring the delivery of low, medium and high viscosity oils. The meter is equipped with an integrated filter. The K600/3 is an electronic gear flow meter indicated for the control of the dispensing of lubricating oil and anti-freeze liquid for non-commercial use. Equipped with an aluminium measuring chamber body, it consists of an integrated suction filter to ensure a safe dispensing without impurities, which otherwise could cause unpleasant blocks while dispensing.
Features of the K600/3 Oil Fuel Flow Meter:
- Digital fuel flow meter
- 6-60lpm (oil)
- Flow rate indication
- ¾” F BSP Flanged (oil)
- Oval gear system
- Electronic display
- Accuracy +/-0.5% after calibration
- Working temperature -10°c/+60°c
- 5 digit partial and 6 digit totaliser
- 400µ inlet filter
Technical data
Full specifications
| Reference | |
| SKU | F00496A20 |
| EDEL code | EDELP00195357 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
