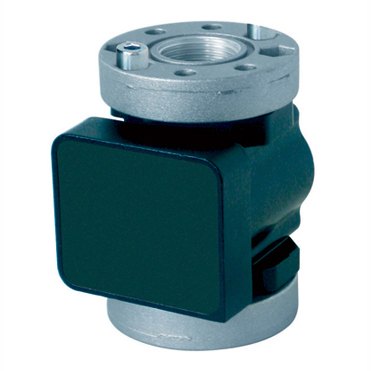

PIUSI K600/3 DIESEL PULSE METER
The Piusi K600/3 digital fuel flow meter measures the quantity of diesel delivered, with a maximum flow rate of 100 lpm. The oval gear pulse meters are designed to meet a wide range of product delivery measuring requirements in the private distribution of fuel, lubricant and low, medium and high viscosity liquids. The oval gear measuring principle adopted offers high precision and low pressure losses.
Easy interfacing with control systems makes the Piusi K600/3 pulse flow meter is the ideal solution for equipping fuel delivery pumps for private use in stationary lubricant transfer/delivery systems, as fuel meters for tank filling arms, for control of burner or power unit fuel consumption and other industrial applications requiring fluid delivery control.
Performance:-
- Flow rate 10 - 100 l/min
- Fluid viscosity 2 - 5.35
- Pulses per litre 35
- 1” F BSP Flanged Inlet/Outlet
- Oval gear system
- Accuracy +/-0.5% after calibration
- Inlet filter
Construction features:-
- Body with aluminium measuring chamber
- Oval gears made of acetalic resin
- Aligned inlet/outlet apertures provided with female thread
- Integrated suction filter
Technical data
Full specifications
| Physical | |
| Empty weight | 3 kg |
| Reference | |
| SKU | F00472A00 |
| EDEL code | EDELP00195357 |
