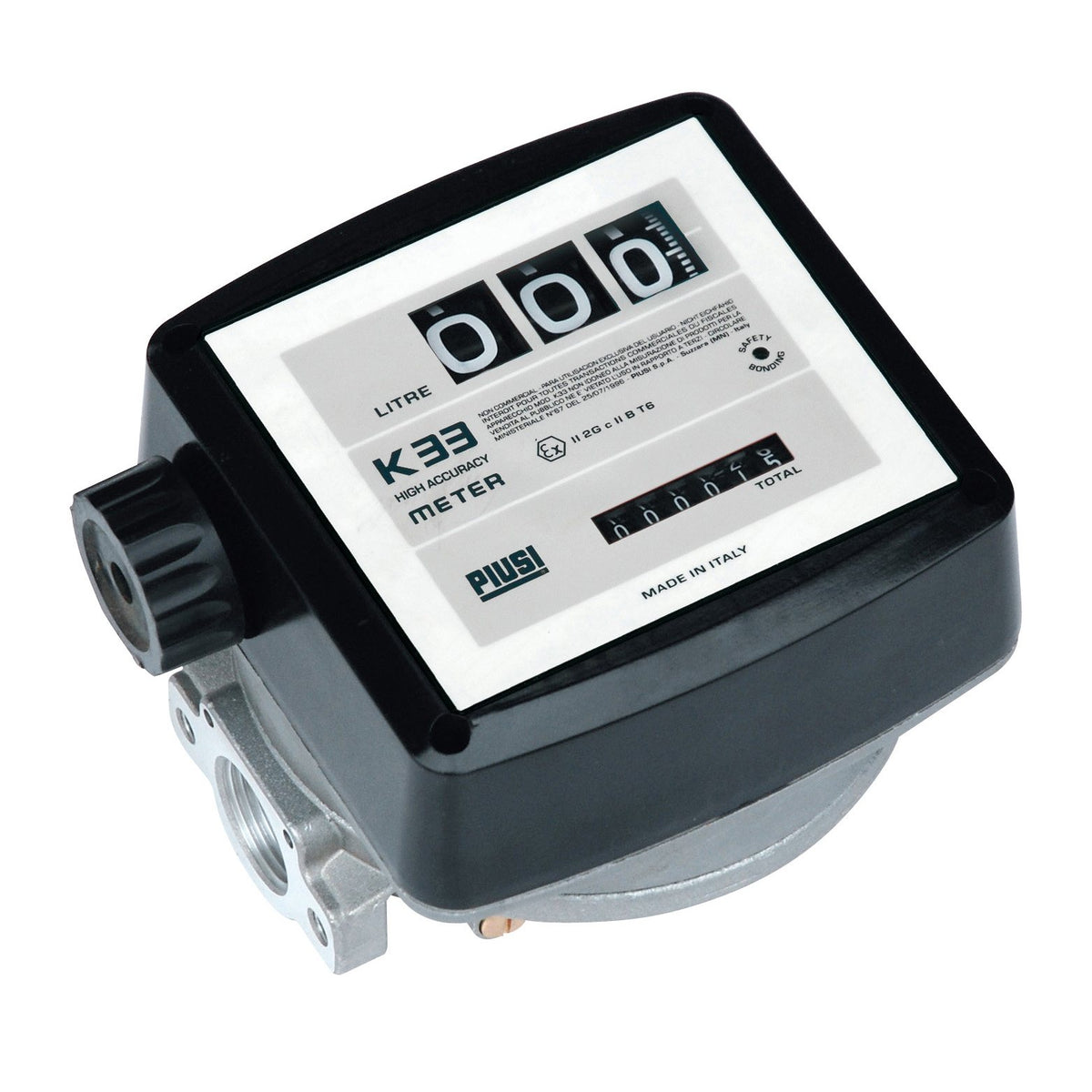

PIUSI K33 ATEX MECHANICAL FLOW METER

PIUSI K33 ATEX MECHANICAL FLOW METER

The Piusi K33 ATEX Mechanical flow meter is designed to measure the exact quantity of gasoline, diesel or kerosene in a potentially explosive environment.
Able to measure up up 999.9 litres at a time and easy to install and calibrate, the ATEX approved K33 flow meter is a flexible petrol and diesel flow meter. These Piusi fuel flow meters can be implemented in either rigid or flexible pipe lines, or installed directly onto the pump. Reliable, economical and easy to install and calibrate on site. Also gravity functional thanks to reduced resistance to flow.

Flow meters are essential for measuring quantities dispensed, and professionals need precise, reliable, robust instruments. Piusi's response to these requirements is a comprehensive range of digital and mechanical flow meters, some of which stand out for their light weight and precision, and others for their strength and reliability. Piusi flow meters can be used for the widest imaginable range of applications, including for diesel, oil and foodstuffs.

Our range of flow meters also includes models designed for the most demanding situations: for example, we have high flow-rate flow meters and pulser flow meters which read the flow rate of the liquid and display the results on remote screens. This solution is particularly useful on trucks and earthmoving machinery, for example.

Mod. K33, 3 digit display. (max 999 litres), 6 digit totals.
Flow rate of 20 to 120 litres per minute.

Specification:

• Diesel, kerosene and petrol flow meter
• Can be rotated to allow flow from 4 directions
• 3 digit resettable and 6 digit non-resettable totaliser
• Flow rate: 20-120ltr Per Min
• 1' F x F BSP Inlet/Outlet
• Accuracy +/-1% after calibration
• Nutating disk system
• ATEX certified to 2 G IIB T=85 deg C (T6)
• Operating pressure 3.5 bar
• Bursting pressure 28 bar
