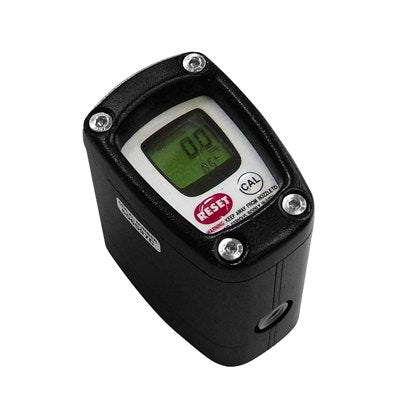

PIUSI K200 LOW FLOW IN-LINE METER

PIUSI K200 LOW FLOW IN-LINE METER

Flow rates from 0.1 litre/minute to 2.5 litre/minute.

This electronic oval gear in-line meter, for product delivery control and measurement, are used in the private distribution of low, medium and high viscosity fluids such as fuel, lubrication oil. The oval gear measuring principle adopted offers high precision and low pressure losses together with a compact lightweight design and easy installation. These flow meters interface easily with management systems, making them the ideal solution to fit on non-commercial fuel distributors. These flow meters are also ideal as flow meters for cistern loading arms, controlling the consumption of fuel in burners and generator sets and other industrial applications.

Ease of use, compactness and the independent battery power supply make these products suitable for installation in both stationary systems on fluid transfer and distribution lines and in mobile applications as an accessory for delivery valves and guns and for all other industrial applications that require fluid delivery control.

Performance

• Precision +/- 0.5 % in flow rate range after calibration
• Repeatability 0.2%
• Pressure loss < 0.5 bars (7 psi) at max flow rate
• Construction features
• Body with aluminium measuring chamber
• Oval gears made of acetylic resin
• Aligned inlet/outlet apertures provided with female thread
• Pulse signal type: raw signal (reed switch), single channel
• Electronic card with LCD housed in cover 5-digit partial total ( h= 11.5 mm) with floating point from 0.001 to 999.99 8-digit non-resettable total (h= 5 mm) from 1 to 99999999
• Battery power supply 2 x 1.5 V
• Resettable total available
