OIL TALLY METER
OIL TALLY METER
This oil flow meter is very flexible thanks to its 360 degree rotating face and ability to be installed in a horizontal, vertical or inclined position.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Centre Tank Services Ltd
What makes this METER the right choice?
OIL TALLY METER

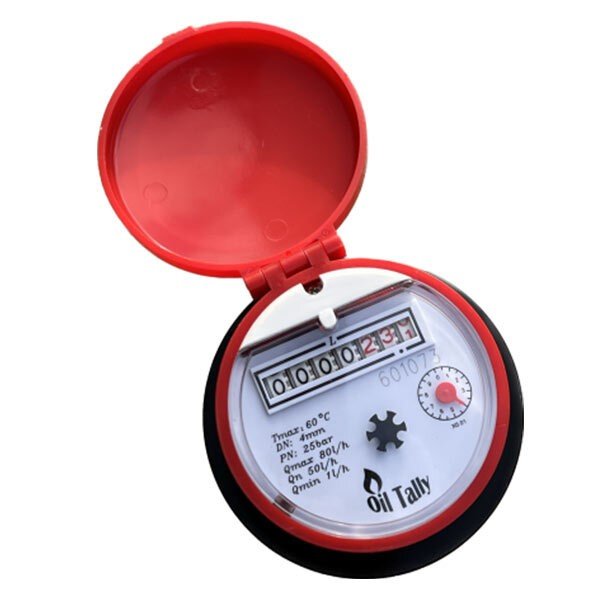

The Oil Tally domestic heating oil meter is a mechanical display meter designed to measure the amount of fuel oil/kerosene that has been used, primarily in domestic applications. This oil flow meter is very flexible thanks to its 360 degree rotating face and ability to be installed in a horizontal, vertical or inclined position. These fuel flow meters come as standard with 10mm compression fittings.
Specifications:-
- Flow rate: 1-50litre Per Hour (won't work for flow rate less than 1 litre per hour)
- Temperature range: -10 to +60 degree C
- 7 digit non-resettable totaliser
- Can be installed horizontally or vertically
- Rotating display for simple use and installation
- C/w 10mm compression fittings
- Max Pressure (bar) - 2
- Accuracy - +/-2%
- Positive displacement/ low pressure
- For fitting indoors or in a weatherproof enclosure
Technical data
Full specifications
| Reference | |
| SKU | OE0052 |
| EDEL code | EDELP00182267 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
