LOCKING ANGLE BRASS GATE VALVE

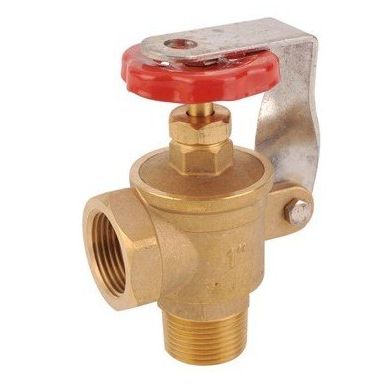

The Locking Angle Brass Gate Valve is used primarily on the bottom outlet of a gravity fed diesel storage tank. These gate valves are designed to come out at 90º to take away the pressure on the hose, and to maximize the flow rate through the delivery hose without restriction. The locking lever on these gate valves allows it to be padlocked when not in use. This angle gate valve is supplied as standard on some of our Gravity Hose Kits.
- Brass gate valve
- NBR seals
- 1” M x F threads
- PN8 rated
- Suitable for water, diesel and oil
- Bore DN (mm) - 24.5
- Pressure Rating (Bar) - PN8
- Length (mm) - 90
- Height (mm) - 80
Technical data
Full specifications
| Reference | |
| SKU | OAB3046 |
| EDEL code | EDELP00182267 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
