HZ5 DOMESTIC HEATING OIL METER
HZ5 DOMESTIC HEATING OIL METER
This heating oil meter is robust and durable, and thanks to its clear display, the amount of oil consumed can easily be read off the meter.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Centre Tank Services Ltd
What makes this METER the right choice?
HZ5 DOMESTIC HEATING OIL METER

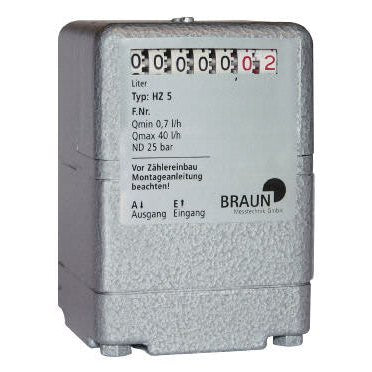

The HZ5 domestic heating oil meter measures the quantity of fuel oil used. This heating oil meter is robust and durable, and thanks to its clear display, the amount of oil consumed can easily be read off the meter.
Ideal for domestic use, the HZ5 flow meters are suitable for mounting on all makes of burner, and can be retrofitted to any existing heating system. These fuel flow meters can be installed vertically in either a single or twin pipe system, with the display positioned horizontally and a backwards pitch of no more than 45 degrees.
Technical Specification:-
- Robust and durable
- Use energy efficiently and economically
- Can be retrofitted to any existing heating system
- Boiler capacity: 7-400kW
- Flow rate: 0.7/40ltr Per Hour (won't work for flow rate less than .7 litre per hour)
- 1/8' F DIN 3852-X-G Inlet/Outlet
- 7 digit non-resettable totaliser
- Pressure (bar)-(psi) 25 - 362
- Not for outdoor use
Technical data
Full specifications
| Reference | |
| SKU | OE0046 |
| EDEL code | EDELP00182267 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
