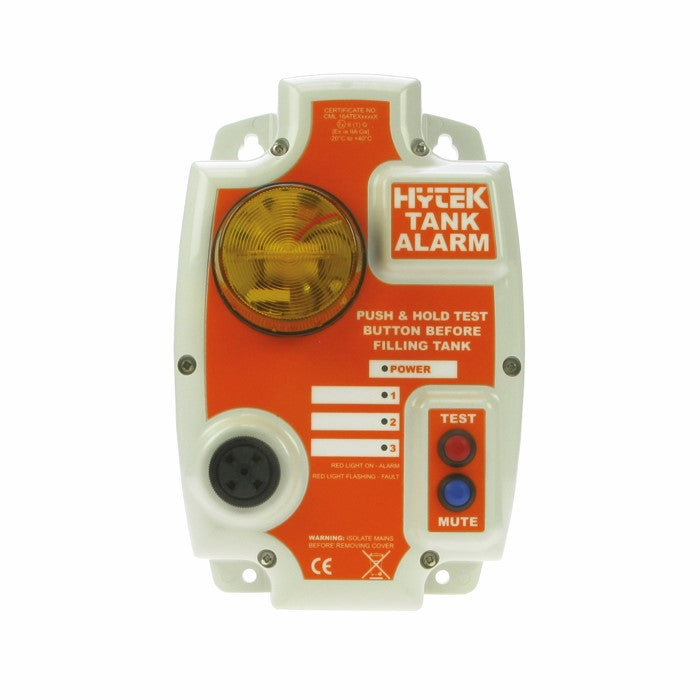

Hytek 230V Tank Alarm - ATEX Certified

Hytek ATEX Certified 230V Operated Tank Alarm

The Hytek tank alarm can be used wherever a high, low or bund level alarm is required in either vertical or horizontal tanks. Float activated switches detect alarm conditions, a maximum of 3 float switches can be installed, monitoring high, low or bund levels. The tank alarm is suitable for many liquids including diesel, gas oil, oils. Easy installation via a wall mounting bracket & fast wiring using our plug & socket field connections. Switches installed in the main unit allow easy float configuration. Modern, robust & weatherproof to IP55. Supporting the powerful sounder, beacon (mains versions), test & mute buttons & channel indicators. Pushing the test button activates a full system test, checking all float switches installed & all other components, the sounder activates as notification of a successful test. This Hytek tank alarm is a 230V mains powered version.

Specification

• 3 channel alarm designed to detect overfill, low level/reorder level or bund alarm situations in 1, 2 or 3 tanks. Connect up to 3 float switches
• Battery, weatherproof alarm box with individual channel LED
• High-powered alarm sounder 90dB at 1m
• Warning beacon
• Universal float switches, can be used for high, bund or low level/reorder, just configure the dip switches inside the alarm box to activate the level alarm required
