HYTEK 230V COMPACT HALF CABINET DIESEL

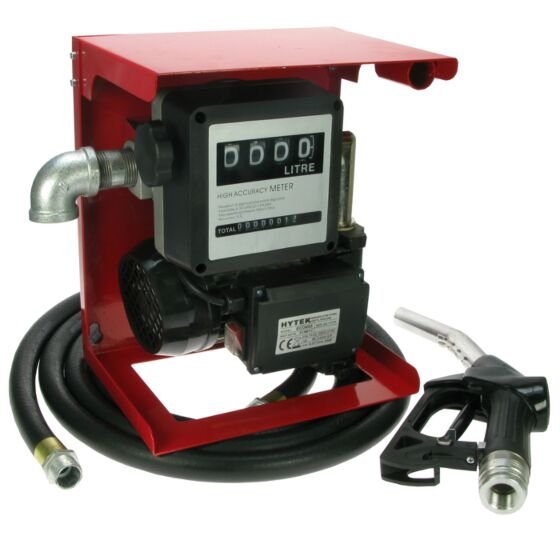

Hytek 230V Compact Half Cabinet Diesel Pump
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Hytek GB Ltd
What makes this Pump the right choice?
Hytek 230V Compact Diesel Pump with Flow Meter
Ideal to install onto static diesel/gasoil storage tanks choose 45L/min speed version to fill vehicles with small fuel tanks (tractors, vans, cars, machinery) and the high speed 75L/min version to fill vehicles with larger fuel tanks (plant equipment, earth movers combines, trucks/coaches etc) Ideal for the agriculture, plant and haulage market.
- Choose between 45 litres/min or 75 litres/min flow rate
- 4 digit resettable meter and 8 digit totaliser
- Manual On/Off switch
- 4m delivery hose
- Self priming pump
- Suitable for diesel or biodiesel up to B30
- Integral filter and bypass valve
- Weatherproof to IP55. Continuously rated motor
- Meter accuracy +/- 2%
- Auto Nozzle
- 2 year warranty.
Technical data
Full specifications
| Physical | |
| L × W × H | 50 × 35 × 30 cm |
| L × W × H (mm) | 500 × 350 × 300 |
| Empty weight | 19 kg |
| Reference | |
| SKU | ECON45 |
| EDEL code | EDELP00183251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
