HYDRA RAINMASTER TRIO WATER FILTER

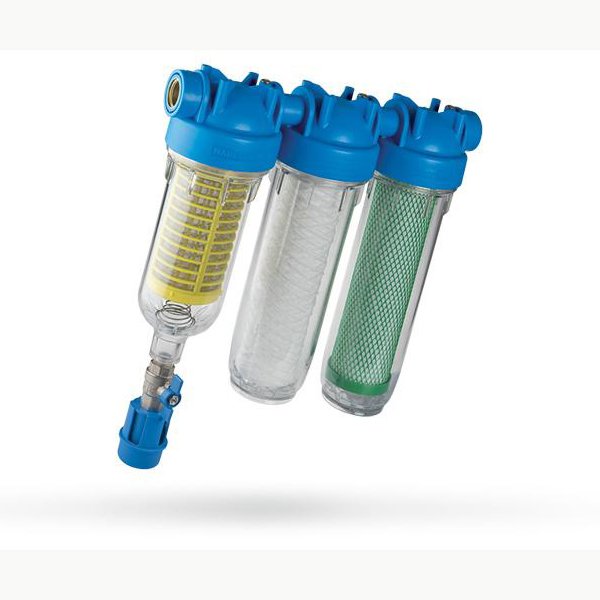

The Hydra Rainmaster Trio Water Filter is a multi-stage self-cleaning filter especially designed for the filtration and treatment of rainwater, in re-cycling applications.
The Hydra Rainmaster Trio comes with the following filters:
- Hydra 90 micron stainless steel filter
- Polypropylene filter 25 micron
- Carbon Block 10 micron filter
Specification:
- 1" BSP connection
- Flow rate l/h - 5500
- Max working pressure: 8 bar (116 psi)
- Min working pressure : 1,8 bar (26 psi)
- Max working temperature: 45°C (113°F)
- Min working temperature: 4°C (39,2°F)
- Non-toxic materials, suitable for drinking water.
- Head: reinforced polypropylene.
- Bowl: PET.
- O-rings: EPDM.
- Breather-valve: body stainless steel, O-ring EPDM.
- IN/OUT brass threads: CW 617 N brass.
- Discharge ball-valve: CW 617 N brass nickel plated.
- Drain funnel: reinforced polypropylene
Technical data
Full specifications
| Physical | |
| L × W × H | 39 × 11 × 34 cm |
| L × W × H (mm) | 390 × 107 × 336 |
| Reference | |
| SKU | 1611010037 |
| EDEL code | EDELP00317407 |
