HORN HAND PUMP OK 9B
HORN HAND PUMP OK 9B
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Energy
What makes this 9B the right choice?
HORN HAND PUMP OK 9B

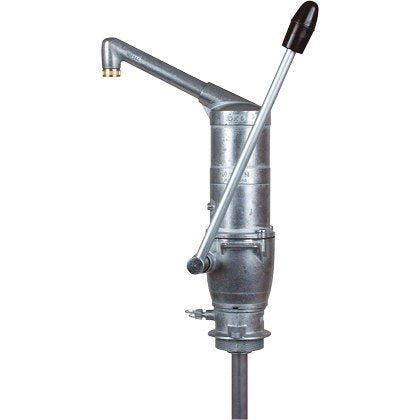

This hand pump is a hand-operated piston pump for distribution out of drums and small containers. Hand operated piston pump for drums and small containers.
Description:
- For engine oil, gearbox oil and hydraulic oil up to SAE 80
- Piston pump
- Single action
- Non-drip outlet
- Adjustable drum screw connector
- Clasp for padlock
Specifications:
- Flow rate: 0. 25 L /stroke
- Telescopic suction pipe length: 490-925 mm
- Drum thread: G 2'
- Ambient Temperature-20 - +40 deg C
- Dimensions (W x D x H)220 x 120 x 390 mm
- Weight 3.5 kg
Technical data
Full specifications
| Physical | |
| Empty weight | 4 kg |
| Reference | |
| SKU | 122029000 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
