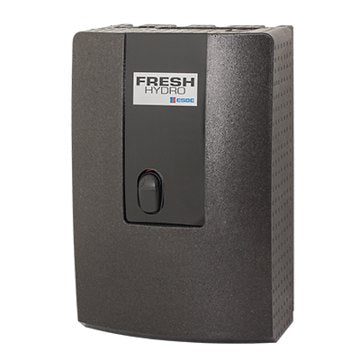

FRESH HYDRO HOT WATER UNIT
FRESH HYDRO HOT WATER UNIT
It is a modern and efficient way of potable water heating.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
ESBE AB
What makes this UNIT the right choice?
FRESH HYDRO HOT WATER UNIT
ESBE Fresh Hydro Units stands for outstanding performance in potable water installations. It is a modern and efficient way of potable water heating. The Fresh Hydro Hot Water Unit is designed for potable water applications. Equipped with unique hydro block, quick mixing actuator, two pass plate heat exchangers and intelligent controller the FSK100 series are one of a kind. These high sophisticated appliances provide outstanding potable water performance and temperature stability. The Fresh Hydro Unit works according to the flowrate principle and guarantees potable hot water (PHW) on demand, with stable and accurate temperature as well lowest stand by losses.
- All time fresh, vital and hygienic hot water in the demanded volume
- High tap rates
- Fast reaction times
- Lowest calcification risk
- Legionella flushing function
Technical Data:
| Tap performance: | 40 l/min - at 70°C primary; 40 l/min - at 45°C outlet secondary |
| Plate, heat exchanger (plates): | 41 |
| Insulation: | EPP |
| Weight: | 20,0 kg |
| Working pressure, potable water: | 1 MPa |
| Working pressure, heating: | 300 kPa |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % (above 20% admixture, the pump data must be checked) |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Media temperature, max.: | +95 °C |
| Media temperature, min.: | +2 °C |
| Connection - Cold water (A): | Internal thread G1", ISO 228/1 |
| Connection - Warm water (B): | Internal thread G1", ISO 228/1 |
| Connection - Storage tank (C): | External thread G1", ISO 228/1 |
| Connection - Storage tank (D): | External thread G1", ISO 228/1 |
| Connection - Circulation (E): | External thread G½", ISO 228/1 |
| Connection - Flush connection (F): | External thread G½", ISO 228/1 |
Technical data
Full specifications
| Physical | |
| L × W × H | 30 × 40 × 60 cm |
| L × W × H (mm) | 304 × 400 × 600 |
| Empty weight | 20 kg |
| Reference | |
| SKU | FSK100 |
| EDEL code | EDELP00366454 |
