FPZ R30-MD SIDE CHANNEL BLOWER

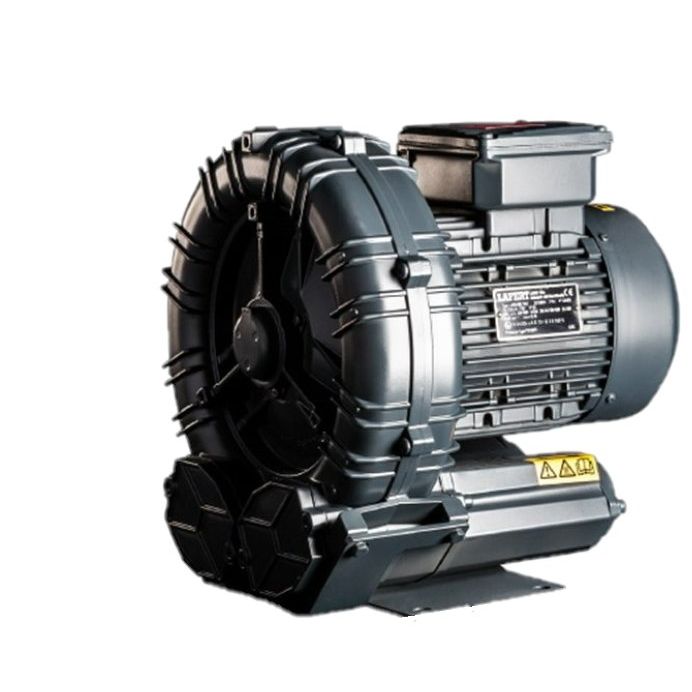

FPZ R30-MD Side Channel Blower
A double stage impellor is mounted directly onto the motor shaft for contact-free compression.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Parts
What makes this Blower the right choice?
FPZ R30-MD Side Channel Blower
The R30-MD FPZ Side Channel Blower is a single impellor “double stage” blower which supersedes the SCL-DH 30 model. A double stage impellor is mounted directly onto the motor shaft for contact-free compression. This blower has a robust aluminium construction.
Product characteristics
- 1Phase Power
- Noise Level: 69.2-72.8 dB
- Energy efficient motors (R30-MD 1.1kW to 1.5kW)
- No wearing parts/maintenance free operation (inlet filter should be periodically checked for blockages)
- Smooth airflow delivery (no pulsations in the conveyed fluid)
- Modular design, easy to install (for proper use, the blower should be equipped with an inlet filter and pressure relief valve
- Shipping: Free Delivery
- Weight: 30.000kg
- Dimensions: D:372mm W:319mm H:346mm
Technical data
Full specifications
| Physical | |
| L × W × H | 37 × 32 × 35 cm |
| L × W × H (mm) | 372 × 319 × 346 |
| Empty weight | 30 kg |
| Reference | |
| SKU | 0011442 |
| EDEL code | DELIVERY |
