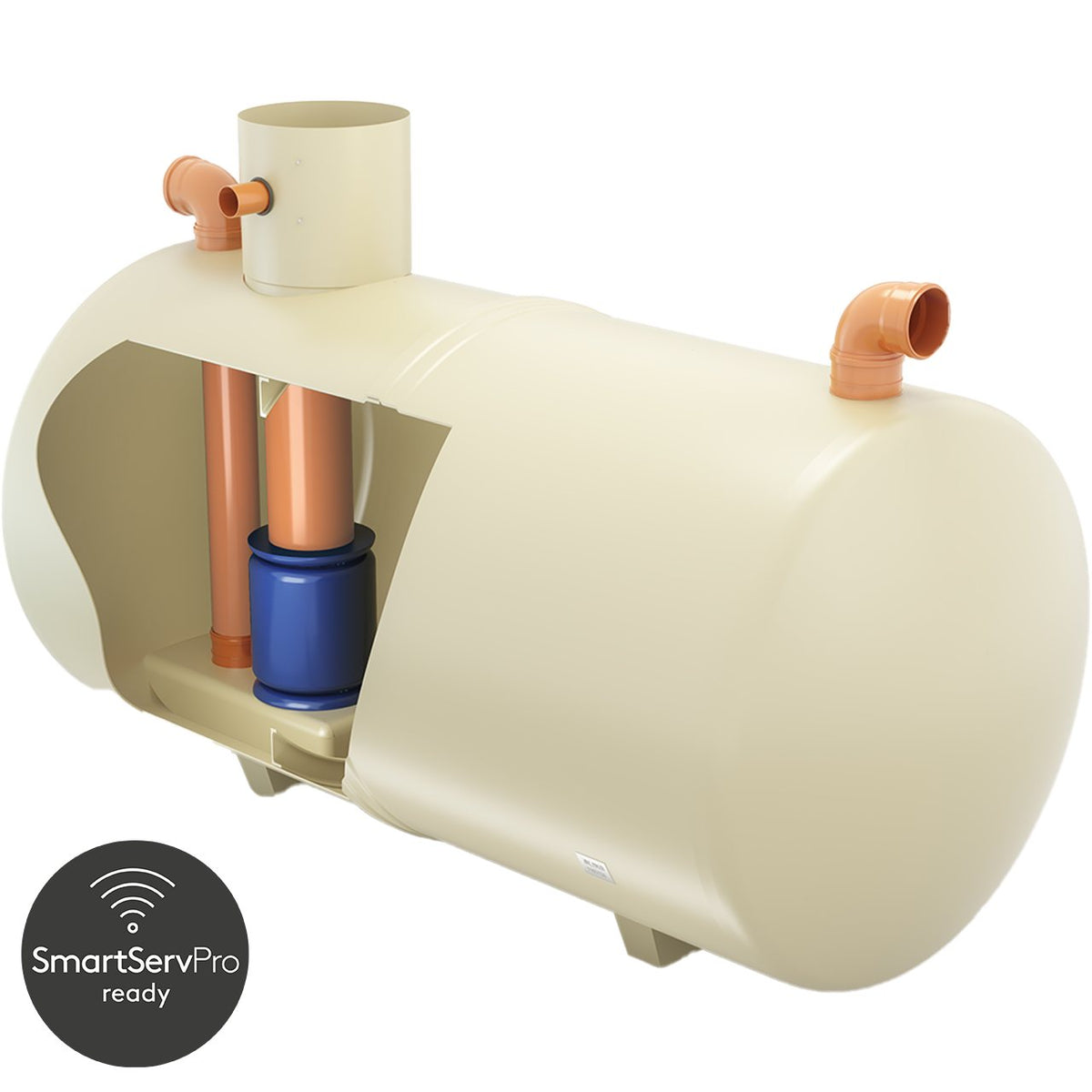

FORECOURT SEPARATOR

FORECOURT SEPARATOR KZA

Our super-efficient forecourt separator provide the ideal solution for potential spillages likely to occur during vehicle refuelling and road tanker delivery. Use this forecourt separators to comply with safety and environmental criteria.

Performance

• Operation ensures that the flow cannot exit the unit without first passing through the coalescer assembly on this forecourt separator.
• In normal operation, the forecourt separator has sufficient capacity to provide storage for separated pollutants within the main chamber, but is also able to contain up to 7,600 litres of pollutant arising from the spillage of a fuel delivery tanker compartment on the petrol forecourt.
• The forecourt separator has been designed with an automatic closure device to ensure that oil cannot exit the forecourt separator in the event of a major spillage. Subsequently the forecourt separator should be emptied immediately.

Features

• Light and easy to install, saving you time and money
• Class I and Class II design for flexibility of choice
• Inclusive of silt storage volume
• Fitted inlet/outlet connectors
• Vent points within necks
• Extension access shafts for deep inverts
• Maintenance from ground level
• Oil storage volume
• Coalescer (Class I unit only)
• Automatic closure device
• CE-marked
• Oil Alarm System available

Installation

The forecourt separator unit should be installed on a suitable concrete base slab and surrounded with concrete or pea gravel backfill. If the forecourt separator is to be installed in a trafficked area, then a suitable cover slab must be designed to ensure that loads are not transmitted to the unit. Installation is subject to Local Authority requirements.

Specification

• Total capacity: 10,000 litres
• Drainage area: 555 m2
• Max. Flow rate : 10 l/s
• Access shaft: 600 mm diameter
• Base to inlet invert: 2110mm
• Base to outlet invert: 2060mm
• Standard fall across unit: 50mm
• Min. inlet invert: 400mm
• Standard pipework: 160mm

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested commissioning by Klargesters own trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

WHAT'S INCLUDED IN THE COMMISSIONING? CLICK HERE FOR MORE INFORMATION

*DELIVERY TERMS

All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.

HIAB off-loading is available at extra cost, if requested.

It is the responsibility of the customer to inform us, if off-loading equipment is required.

Service and Maintenance:

It is essential that you ensure your separator is properly serviced and maintained to remain compliant with EN 858-1 standard and prevent pollution due to blockages. Kingspan's service and maintenance packages have been developed using their expert knowledge of their separators to help keep your separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.
