FMV9000 FUELMASTER STANDARD

FMV9000 FUELMASTER STANDARD
FM9000 FUELMASTER ADVANCED The FuelMaster Advanced Dispensing Tanks are a secure bunded fuel storage & dispensing unit (a tank within a tank) which protects your diesel and the environment.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Energy
What makes this STANDARD the right choice?
FM9000 FUELMASTER STANDARD

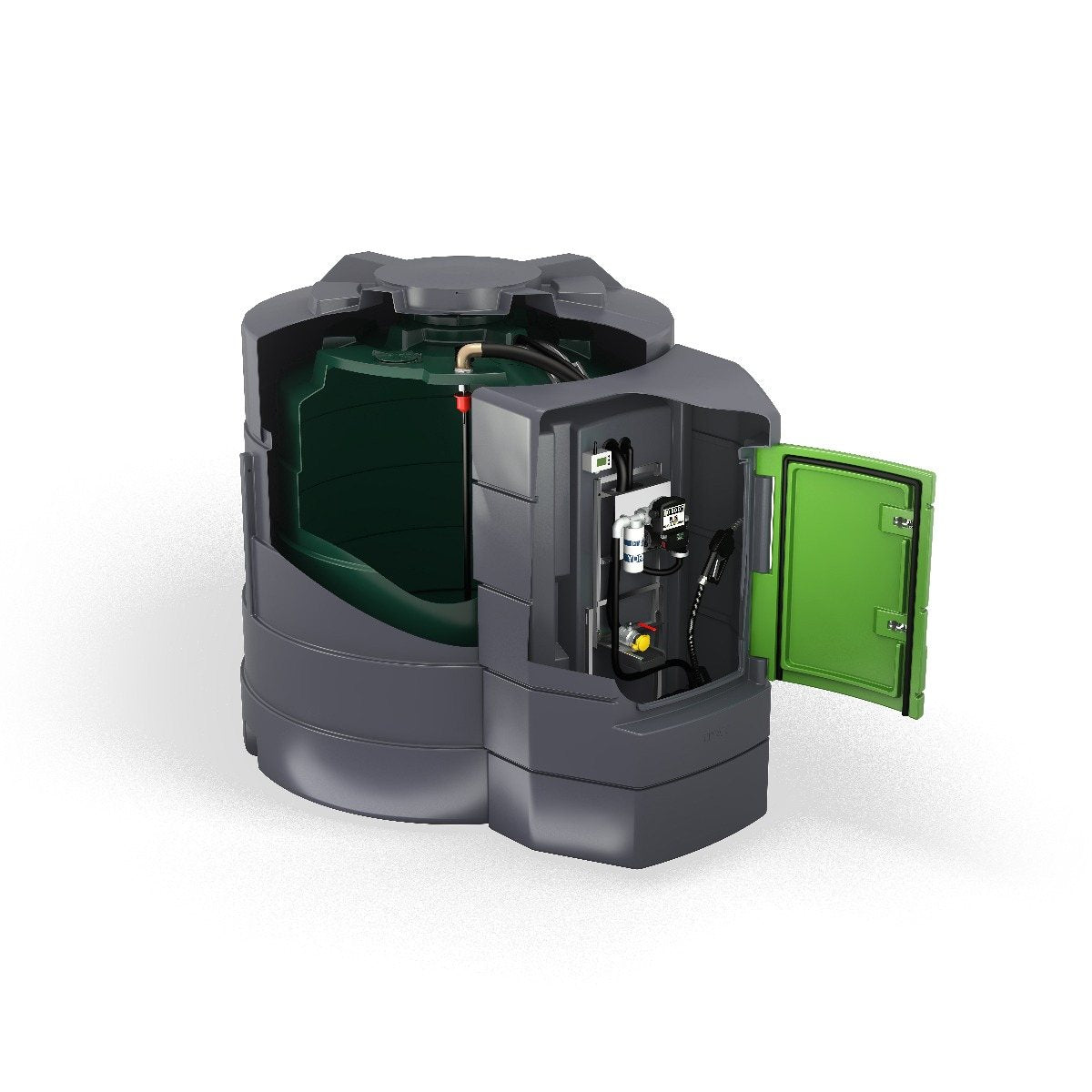

The FuelMaster Standard Dispensing Tanks are a secure bunded fuel storage & dispensing unit (a tank within a tank) which protects your diesel and the environment. The robust, ribbed construction protects against accidental damage and will not rot or rust, even in the most exposed locations. These dispensing units are quality assured and come with access to a lockable cabinet to providing security for internal equipment. The FuelMaster Bunded Fuel Stations are guaranteed for 10 years (pump and accessories guaranteed for two years) and are the storage tank of choice for safe storage of fuel. These bunded fuel masters are fitted with Watchman Sonic oil level monitor device as standard. These advanced bunded fuel tanks are also fitted with a overfill prevention device, SpillStop to prevent groundwater pollution.
Standard equipment includes:
- 72 Litres / Min 230V fuel pump
- SPILLSTOP overfill prevention device
- 6m x 3/4" Delivery hose with A60 Automatic nozzle and nozzle holder
- 1" Suction Line
- 10 micron particle and water filter
- LED light
- Filling through 2"BSP Coupling
- Mechanical Level Clock Gauge
- Tank capacity: 9000 Litres / 1,980 Gallons
- Compatible with HVO (Hydrogenated Vegetable Oil)
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities.
All tanks greater than 2,000 Litre capacities are delivered on 45ft. Flat-bed Articulated Trailers.
HIAB off-loading is available at extra cost for deliveries of tanks above 2,000 Litre capacities, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 9000 L |
| L × W × H | 328 × 245 × 295 cm |
| L × W × H (mm) | 3280 × 2450 × 2950 |
| Reference | |
| SKU | 1058956 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
