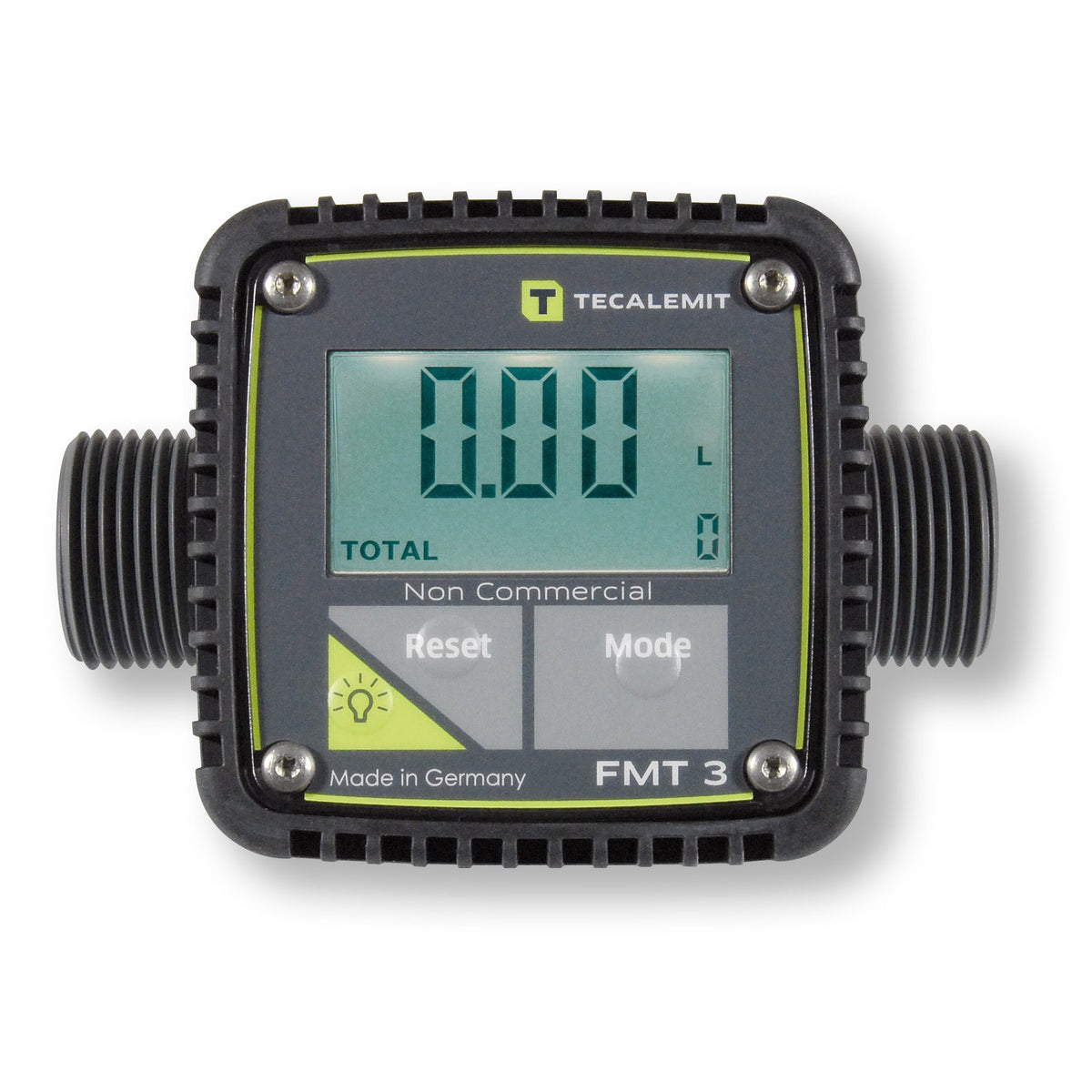

FMT 3 ELECTRONIC FLOW METER

FMT 3 ELECTRONIC FLOW METER

The FMT 3 Electronic Flow Meter is precise, robust and versatile. This new generation electronic flow meter can be used with a wide range of liquids such as fuel oil / diesel, water and antifreeze. The FMT 3 Electronic Flow Meter with illuminated digital display utilises the measurement principle of a turbine wheel counter.

The two-line LED display shows the current dispensed amount, and the total stored volume or 8 partial stored volumes. the display can be mounted to suit the viewing angle or rotated after being installed.

The symmetric measurement chamber allows the device to be used with all flow directions. The measurement precision is better than +/- 1%, the nominal operating pressure is 10 bar and the burst pressure is greater than 20 bar.

Benefits:

• Freely rotational after installation
• Variable display orientation
• Large illuminated display
• Precise measurement - less than +/- 1%
• Shows flow rate
• 6 digit display
• Burst pressure of 20 bar

Technical Information

• Flow rate min/max: 5-120 l/min
• Nominal pressure max: 10 bar (145 psi)
• Viscosity range: 0.8 - 40 mPas
• External thread: G1"
• Partial stored volumes: 8
• Measurement precision: +/- 1% (after calibration)
• Protection class: IP 54
• Battery life: Approx 5 years
• Operating temperature: -25 to +55 deg
• Medium temperature: -10 to +40 deg
• Media: diesel / fuel oil, radiator, antifreeze and water
