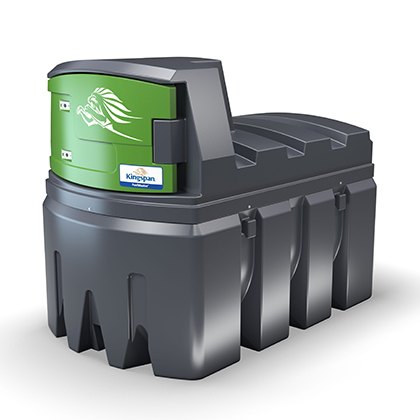

FM2500 FUELMASTER SMART

FM2500 FuelMaster Smart
The robust, ribbed construction protects against accidental damage and will not rot or rust, even in the most exposed locations.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Energy
What makes this Smart the right choice?
FM2500 FUELMASTER SMART
The FuelMaster Smart Dispensing Tanks are a secure bunded fuel storage & dispensing unit (a tank within a tank) which protects your diesel and the environment. The robust, ribbed construction protects against accidental damage and will not rot or rust, even in the most exposed locations. These dispensing units are quality assured and come with access to a lockable cabinet to providing security for internal equipment. The Smart FuelMaster Bunded Fuel Stations are guaranteed for 10 years (pump and accessories guaranteed for two years) and are the storage tank of choice for safe storage of fuel. These bunded fuel masters are fitted with Watchman Flo tank monitor device as standard. These advanced bunded fuel tanks are also fitted with a overfill prevention device, SpillStop to prevent groundwater pollution.
Standard equipment includes:
- Lockable Lid
- 72 lpm** Pump 230V
- 1’’ Suction Line
- Auto Shut-Off Nozzle
- 10 Micron Particle & Water Filter
- 2” BSP Coupling for filling
- Spillstop Mechanical Overfill Protection
- Nozzle Holder
- 6m hose
- Digital Flowmeter (pulser flowmeter linked to Watchman Flo)
- Motion Sensor Light
- Junction Box for Wiring
- Watchman Flo Tank Monitor
- Leak Detection
- Tank capacity: 2500 Litres / 550 Gallons
- Compatible with HVO (Hydrotreated Vegetable Oil)
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 2500 L |
| L × W × H | 246 × 146 × 195 cm |
| L × W × H (mm) | 2460 × 1460 × 1950 |
| Empty weight | 220 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | 1058952 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
