FLYVAR 1000L COMPACT BOOSTER PUMP & TA
FLYVAR 1000L COMPACT BOOSTER PUMP & TANK
Cold water booster pump set for improving mains water pressure in domestic and commercial properties.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Direct Pumps & Tanks
What makes this TANK the right choice?

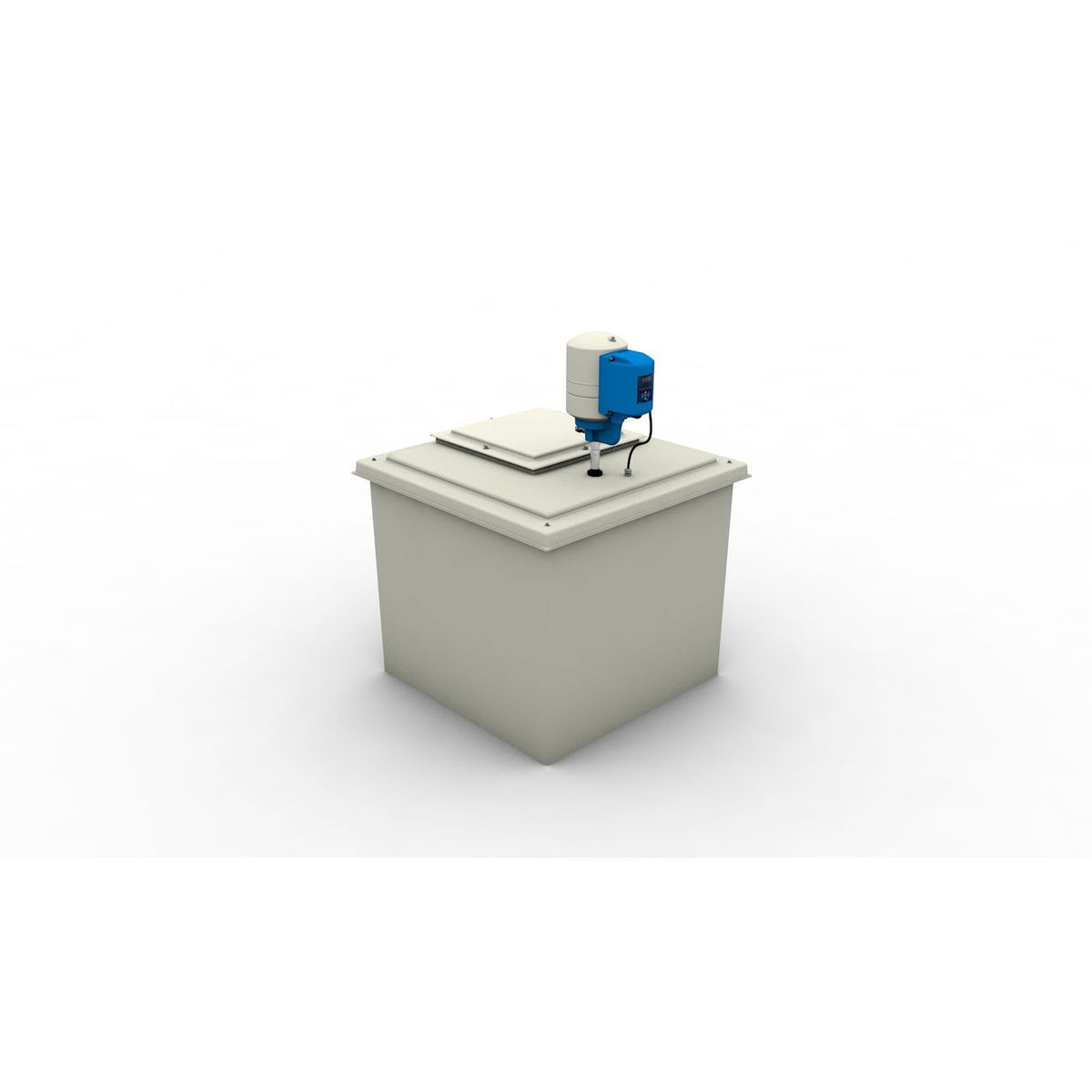

1000L FLYVAR COMPACT BOOSTER PUMP & TANK
The 1000L Flyvar Compact Booster Pump & Tank is specifically designed to boost water pressure and maximise water storage all contained in a space saving tank. The Flyvar Compact has a WRAS approved submersible pump in a GRP tank. The variable speed pump uses low energy and is whisper quiet. The Flyvar Compact Booster Set comes with a single and twin pump option and is available with duty assist and duty standby. This booster tank and pump is suitable for residential and commercial projects due to it's high performance and simple installation.
Each pump comes complete with an independent inverter fixed to the vessel with Bluetooth connectivity to pair the inverters for duty assist functionality without the need for interconnecting wiring. This enables easy installation and testing. With this system you can also pair multiple FlyVar Compacts together which will allow for even more flow when space for situating the system is at even more of a premium.
Features:
- GRP water storage tank
- Compact design with small footprint
- Simple 'plug and play' installation
- Fast to install, little to connect
- Easy maintenance with split lid
- Comes with standby and duty assist
- Comes with power protection device
- Ultra quiet variable speed stainless steel submersible pump
- WRAS approves pump and tank
- Digital status display for alerts and reports
- High flow inlet valve
- 25mm tank insulation
- Common alarm volt free contact
- Low water level pump protection device
Specification:
| Flow Range Single Pump | 1.3-2 litres/sec |
| Flow Range Twin Pump | 2.6-4 litres/sec |
| Pressure Range | 2.5 - 8 bar |
| Max System Pressure | 10 bar |
| Max System Temperature | 23°C |
| Inlet Size | 28mm |
| Outlet Size | 1 1/4" |
| Power Supply | 230/1/50 |
| Control Type | Wireless Bluetooth Technology |
| Tank | 25mm Insulated |
| Pump(s) | AISI 304 Stainless Steel |
| Model Number | Mid Curve Flow | Mid Curve Pressure | kW Rating | Running Current (amp) | Supply Voltage | Inlet | Outlet | Overflow Size | Dry Weight |
| FV40/10S | 40 l/min | 4.5 Bar | 0.75 | 3.8 | 1ph 230v 50hz | 3/4" | 1" | 40mm | 74kg |
| FV40/15S | 40 l/min | 6.5 Bar | 1.1 | 5.2 | 1ph 230v 50hz | 3/4" | 1" | 40mm | 76kg |
| FV80/15S | 60 l/min | 4.5 Bar | 1.1 | 5.4 | 1ph 230v 50hz | 3/4" | 1" | 40mm | 78kg |
| FV80/20S | 60 l/min | 5.8 Bar | 1.5 | 6.1 | 1ph 230v 50hz | 3/4" | 1" | 40mm | 80kg |
| Model Number | Mid Curve Flow | Mid Curve Pressure | kW Rating | Running Current (amp) | Supply Voltage | Inlet | Outlet | Overflow Size | Dry Weight |
| FV40/10T | 80 l/min | 4.5 Bar | 2x0.75 | 2x3.8 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 94kg |
| FV40/15T | 80 l/min | 6.5 Bar | 2x1.1 | 2x5.2 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 96kg |
| FV80/15T | 120 l/min | 4.5 Bar | 2x1.1 | 2x5.4 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 98kg |
| FV80/20T | 120 l/min | 5.8 Bar | 2x1.5 | 2x6.1 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 100kg |
Each pump comes complete with an independent inverter, fixed to the vessel with Bluetooth connectivity to pair the inverts for duty assist functionality. No need for interconnecting wiring, making it easy for installation and testing. This versatile booster set can also pair with multiple FlyVar compacts allowing for even more flow when space for situating the system is at even more of a premium.
Delivery
All our Compact booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
Technical data
Full specifications
| Physical | |
| Capacity | 1000 L |
| L × W × H | 118 × 118 × 161 cm |
| L × W × H (mm) | 1180 × 1180 × 1606 |
| Empty weight | 74 kg |
| Construction | |
| Material | GRP |
| Reference | |
| SKU | FV40/10S/1000 |
| EDEL code | EDELP00002097 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
Technical documentation
Downloads & data sheets
