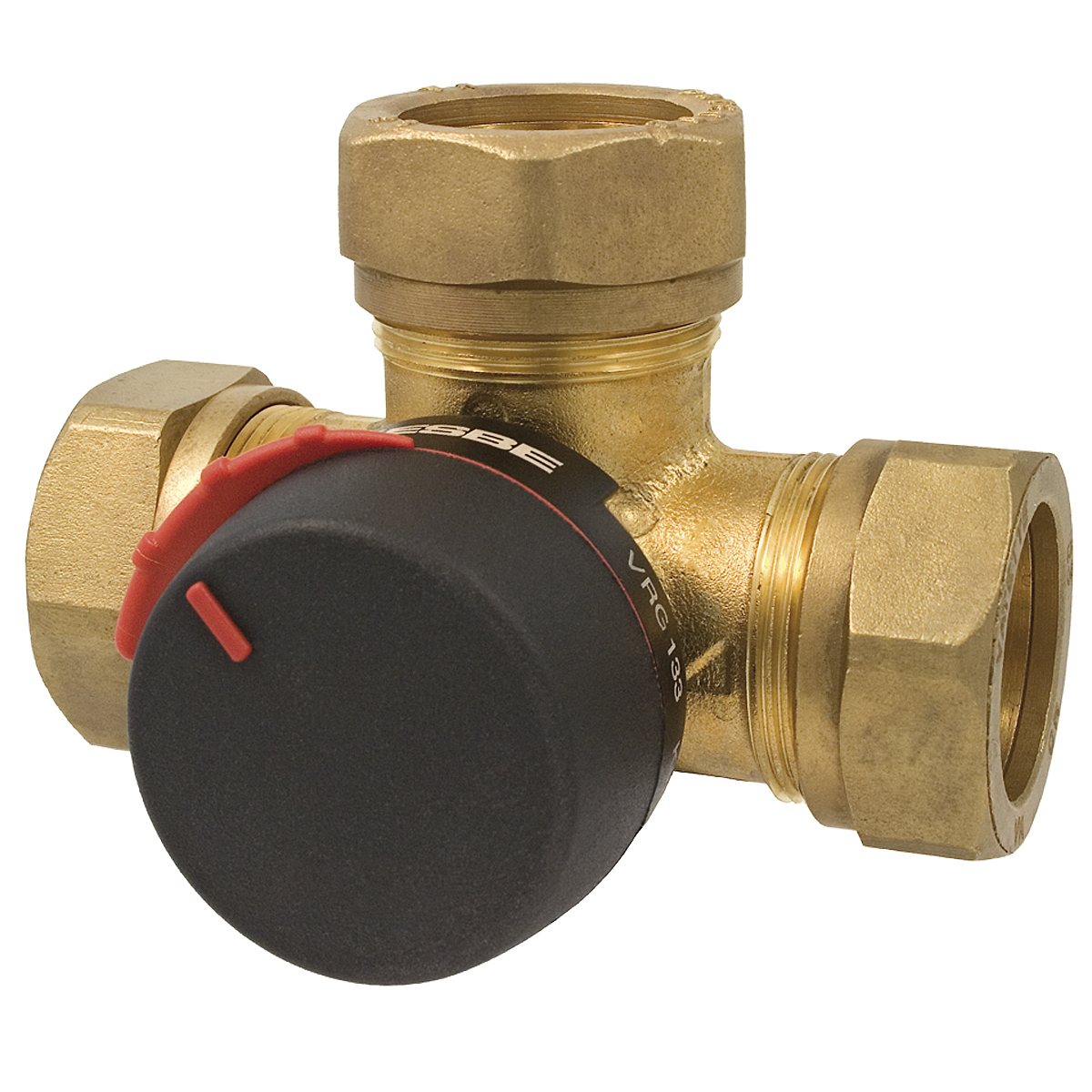

ESBE L-PATTERN MIXING / DIVERTING VALVE VRG131/133
These ESBE L-Pattern Valves are 3-way valves suitable for mixing or diverting operation. The valves are made of high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers. The ESBE series VRG130 is a range of compact low leakage mixing valves made of special brass alloys allowing use in heating and cooling installations.
For easy manual operation the valves are equipped with non-slip knobs and end stops for an operation angle of 90°. The valve position scale can be turned over and rotated, allowing a wide choice of mounting positions. Together with actuator series ESBE ARA600 the VRG130 valves are also easily automated and have extraordinary regulating accuracy thanks to the unique valve-to-actuator interface.
- Superb regulation for highest performance.
- Lowest internal leakage on the market (< 0,05%).
- Compact, flexible and easy to install.
- Long lasting and high durability.
- Perfect match between the valve and ESBE actuators.
- Options of connections are 3/4" 1" and compression fittings of 22 or 28mm
Specification:
| Reference | DN | Kvs | Connection | A | B | C | D | E | Weight (kg) |
| VRG 131 | 20 | 6.3 | RP 3/4" | 36 | 72 | 32 | 50 | 36 | 0.43 |
| VRG 131 | 25 | 6.3 | RP 1" | 41 | 82 | 34 | 52 | 41 | 0.7 |
| VRG 133 | 20 | 6.3 | CPF 22mm | 36 | 72 | 32 | 50 | 36 | 0.4 |
| VRG 133 | 25 | 10 | CPF 28mm | 41 | 82 | 34 | 52 | 41 | 0.45 |
Technical data
| Pressure class: | PN10 |
| Torque (at nominal pressure): | DN15-32: < 3 Nm; DN40-50: < 5 Nm |
| Leakrate in % of flow: | Mixing: <0,05%; Diverting: <0,02% |
| Working pressure: | 1 MPa |
| max. Differential pressure drop, Mixing: | 100 kPa |
| max. Differential pressure drop, Diverting: | 200 kPa |
| Close off pressure: | 200 kPa |
| Rangeability Kv/Kv min, A-AB: | 100 |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Media temperature, max. continuosly: | +110 °C |
| Media temperature, max. temporarily: | +130 °C |
| Media temperature, min.: | -10 °C |
| Connections, Internal thread (Rp): | EN 10226-1 |
| Connections, External thread (G): | ISO 228/1 |
| Connections, Compression fitting (CPF): | EN 1254-2 |
| Material, Valve body: | Dezincification resistant brass, DZR |
| Material, Slide: | Abrasion resistant brass |
| Material, Shaft and bushing: | PPS composite |
| Material, O-rings: | EPDM |
