EFFLUENT FILTER STATION
EFFLUENT FILTER STATION
Quality filtration unit protecting tank contents and downstream equipment from sediment and contamination.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Polylok Ltd
What makes this STATION the right choice?

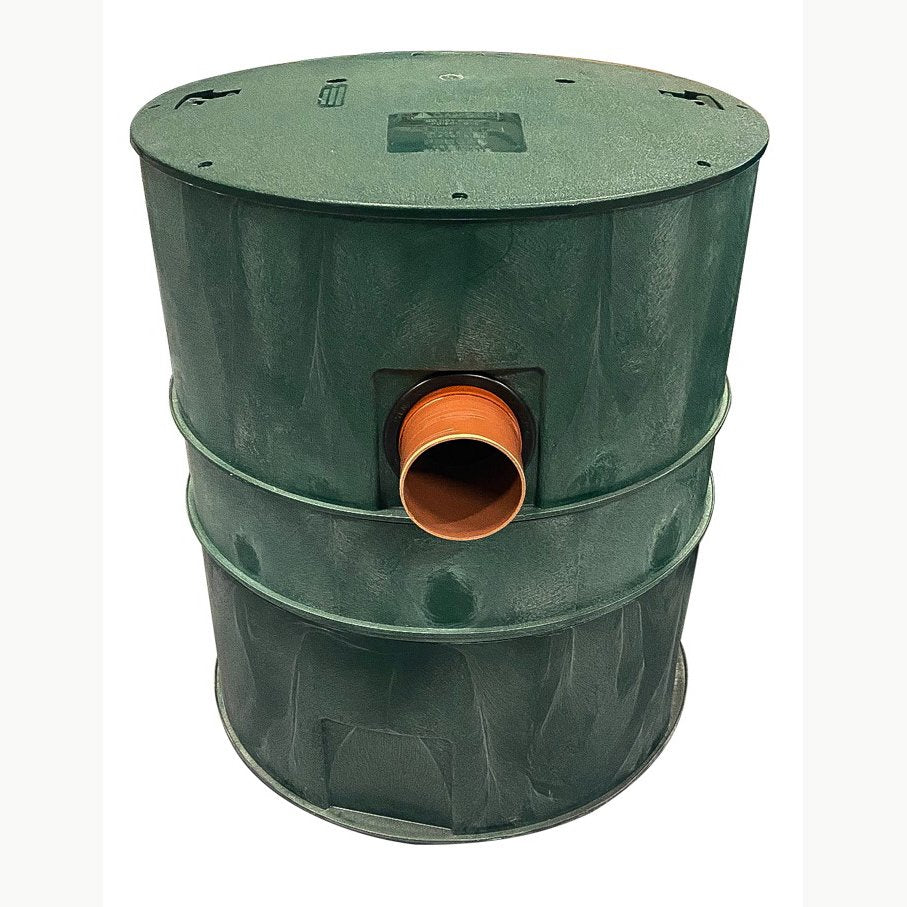

EFFLUENT FILTER STATION
The Polylok Effluent Filter Station offers a ‘connect and go’, highly effective, filtration solution that upgrades existing tanks with 1.6mm filtration. A fully assembled solution when existing tanks are inaccessible for filter installation. Simply add after the tank and pre-distribution of wastewater. Installation at outlet of a new or existing septic tank or a new or existing wastewater treatment plant.
Main Benefits:
- Includes PL-122 Filter with Integrated ball
- Easy to install, just ‘Connect & Go’!
- Prevents solids entering the percolation area or drainage field
- Filtration up to 1.6mm
- Suitable for maximum daily flows up to 5700 litres/day
- Easy cleaning and maintenance.
- Green, lockable 600mm dome cover with integrated handles
- Polylok risers can be added to the station to increase the height to finish at ground level if required
- Available in 5 pre-assembled sizes
Technical data
Full specifications
| Physical | |
| Capacity | 340 L |
| Diameter | 600 mm |
| Reference | |
| SKU | 12MSTEFS |
| EDEL code | EDELP00001505 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
