EFFLUENT FILTER PL68 CARTRIDGE WITH HO
EFFLUENT FILTER PL68 CARTRIDGE WITH HOUSING
Replacement filter cartridge removing sediment and water-in-fuel contamination. Protects burners and engines from costly damage.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Polylok Ltd
What makes this HOUSING the right choice?

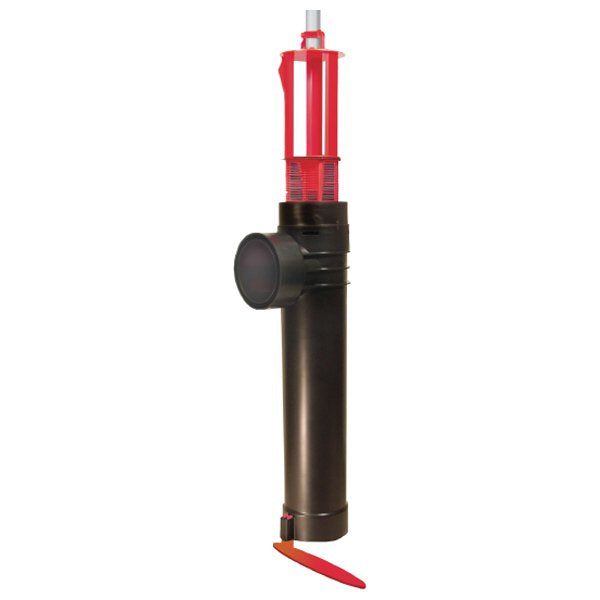

PL68 EFFLUENT FILTER CARTRIDGE WITH HOUSING
The PL-68 effluent filter is designed for residential waste flows up to 3,000 litres per day. It has 68 linear feet of 1/16' filter slots. It is designed to fit a septic tank outlet pipe. It can also be fitted with a snap in gas deflector to ensure any gas bubbles are deflected away from the filter. This filter is supplied with the housing.
Specification:-
- Offers 68 linear feet of 1/16' filter slots, which significantly extends time between cleaning
- Accepts 3/4' PVC handle
- Locks in any 360 deg position when used with PL-68 Tee
- PL-68 Housing can be used as an inlet or outlet tee
- Gasket prevents bypass
Technical data
Full specifications
| Reference | |
| SKU | 30130-68H-3 |
| EDEL code | EDELP00001505 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
