EFFLUENT FILTER PL525
EFFLUENT FILTER PL525
Quality filtration unit protecting tank contents and downstream equipment from sediment and contamination.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Polylok Ltd
What makes this PL525 the right choice?

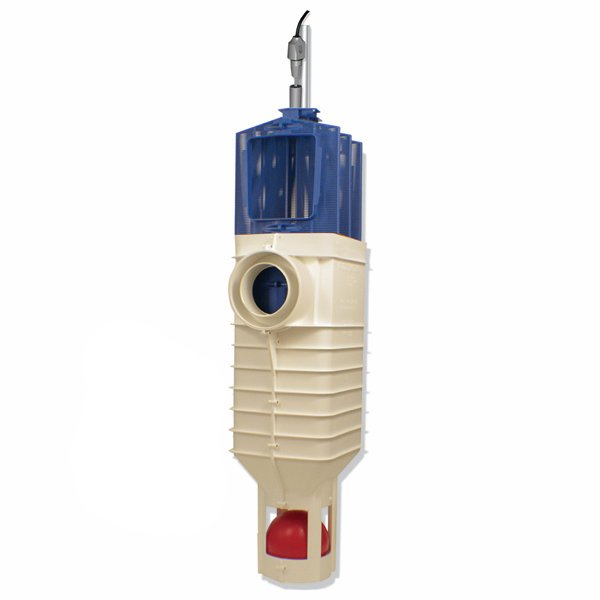

PL525 EFFLUENT FILTER
The PL-525 effluent filter is designed for residential waste flows up to 38,000 litres per day. It has 525 linear feet of 1/16' filter slots. It is design to fit a septic tank or treatment system outlet pipe. The PL-525 effluent filter is unique in design with an automatic shut off ball installed with every filter. When the filter is element is removed for servicing the ball will float up and prevent any solids from leaving the tank. The ball also acts as a gas deflector to ensure any gas bubbles are deflected away from the filter.
Features:
- Rated for 10,000 GPD (gallons per day)
- 525 linear feet of 1/16' filtration
- Accepts 4' and 6' SCHD 40 pipe
- Built in gas deflector
- Automatic shut-off ball when filter is removed
- Alarm accessibility
- Accepts PVC extension handle
Technical data
Full specifications
| Reference | |
| SKU | 3014-525 |
| EDEL code | EDELP00001505 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
