DRUM HEATING JACKET STANDARD
DRUM HEATING JACKET STANDARD
Heavy-duty tank stand for stable, elevated oil or water storage. Hot-dipped galvanised steel for long outdoor service life.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kuhlmann Electro Heat A/s
What makes this STANDARD the right choice?
STANDARD DRUM HEATING JACKET (0-90°C)

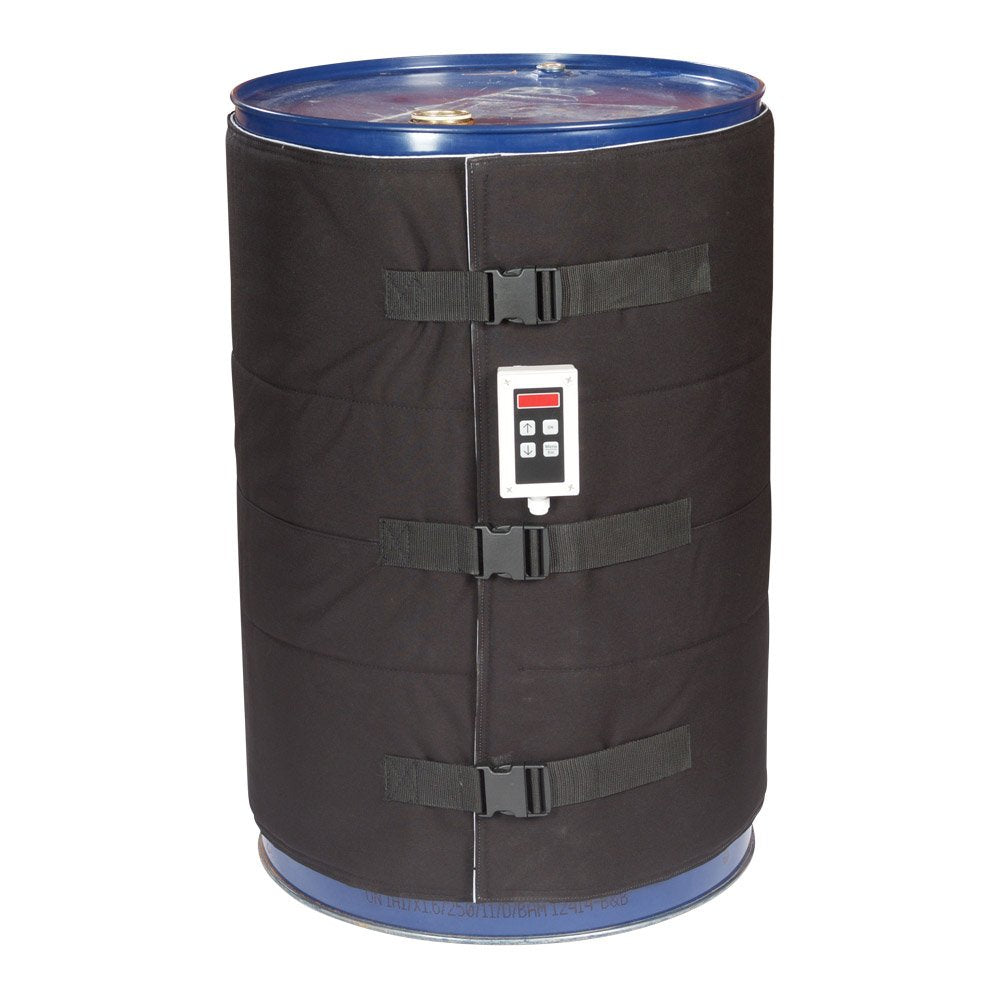

A Drum heating jacket is the perfect solution when it comes to quickly and effectively heating up fluids and materials making them very easy to empty out with minimal to no waste product. They are also useful for protection from UV radiation. The drum jackets are equipped with easy to use digital controllers, with various heating ranges or fixed bi-metal thermostats.
The jackets are made from durable and long lasting, high quality, lightweight design and the construction combined with quick release buckles makes the jackets easy to attach to any standard sized drum.
Warm-up duration approx. 24h for 200 litres of water from 20°C to 82°C (+68°F to +180°F) using a 1200W drum heating jacket.
Ideal for heating up:
- Water.
- Oils and diesel fuel.
- Resin.
- Vaseline.
- Wax, e.g. lanolin (wool wax or wool grease).
- Fats.
- Butters e.g. Ghee.
Specification
- Digital controller 0-90°C (32-194°F).
- Polyester fabric jacket.
- 6mm fibre glass insulation.
- Silicone insulated spiral wound resistance element.
- Internal heat fuse (167°C).
- Adjustable quick release buckles.
- 3 meter (10 feet) power cable.
- IP40 rated (option for IP54)
- Top lid sold separately
All shown products are for 200L drums. Contact us for other drum sizes and options.
Technical data
Full specifications
| Physical | |
| Empty weight | 6 kg |
| Construction | |
| Material | Polyester fabric |
| Colour | Black |
| Ordering & delivery | |
| Reference | |
| SKU | 11-9858 |
| EDEL code | EDELP00002900 |
