HYTEK DIGITAL TURBINE FLOW METER

Hytek Digital Turbine Flow Meter
Quality Hytek Digital Turbine Flow Meter — available from tanks.ie, Ireland's specialist in tank storage and water management solutions.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Hytek GB Ltd
What makes this Meter the right choice?

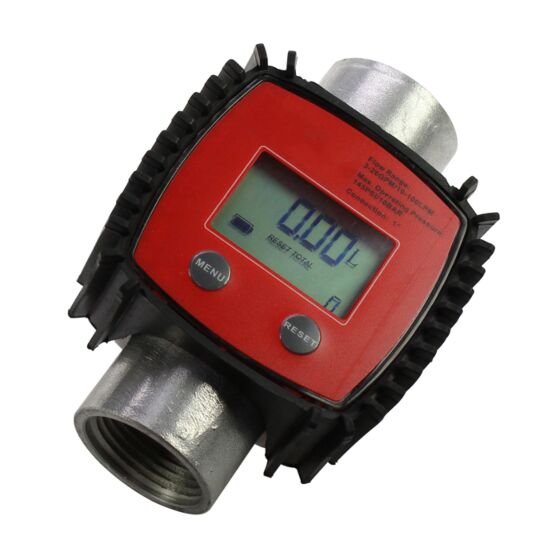

Hytek Digital Turbine Flow Meter For Diesel
- A popular choice with smaller users of fuel and a cost alternative to the traditional mechanical flow meters
- The five-digit register can be reset after each refuelling while the ongoing totaliser keeps an ongoing record of fuel dispensed
- Can be used with an electric dispensing pump
- 5 digits as standard, ideal for dispensing small or larger quantities of fuel
Key features and Benefits:
- Suitable with diesel, HVO & biodiesel up to B30
- Electronic display
- Designed to fit in line with the delivery hose or pipework, or just before the dispensing nozzle
- Flow rate 10 - 100 litres per minute
- 1" BSP female - male parallel ports
- Robust turbine flow meter
- Aluminium body
- Polypropylene turbine
- Weatherproof
- Powered by 1 x CR2 battery included Accuracy +/-1% after calibration
- Front face can be rotated in 90-degree increments, changing the direction of flow
- Maximum pressure 145psi (10 bar)
- Register 5-digit resettable, shows up to 99999 litres
- 7-digit non resettable totaliser
- 2 year parts warranty offered as standard
Technical data
Full specifications
| Reference | |
| SKU | FM-DA1 |
| EDEL code | EDELP00183251 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
