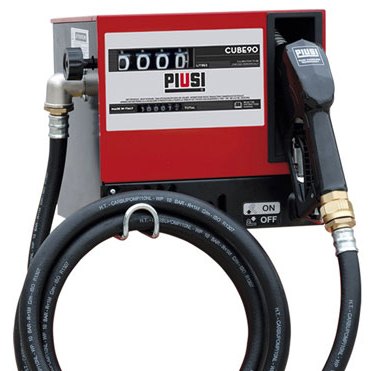

CUBE 90 DIESEL FUEL DISPENSER

CUBE 90 DIESEL FUEL DISPENSER

The Piusi Cube 90 diesel transfer pump is a diesel refuelling pump designed for the dispensing of fuel from a storage tank to a vehicle in private applications. Thanks to it being in a compact enclosure with the nozzle, hose and meter, the Piusi electric fuel transfer pump is the full package required for the quick and clean refuelling of machinery or fleets. The mechanical flow meter integrated in this Piusi pump unit has sturdy mechanical totaliser, which is renowned for its reliability and accuracy. Also incorporated in this fuel dispenser is a nozzle holster with pump start/stop functionality.

Their versatile nature means that Cube 90 diesel transfer pumps can be mounted on tanks or walls using the optional wall support kit, or can be freestanding with use of the optional pedestal. There is also the option to mount this diesel fuel transfer pump onto a drum with the Piusi quick coupling connection.

Vehicles can be refuelled quickly and safely with CUBE fuel pumps. Fuel management options are available for measuring and recording the quantities dispensed.

The flow-meters mounted on CUBE 70 diesel pumps have sturdy mechanical readout systems whose reliability and ease of use have been proven over time. Simple and versatile, CUBE 90 diesel pumps can also be installed on drums, using 2' quick release couplings. The pump dispenses diesel at 900 litres per minute. Suitable for dispensing low-sulphur diesel with 7% bio-fuel content. The self-priming vane pump is fitted with bypass and is installed on anti-vibration supports.

Specification:-

• Fully Enclosed Fuel Dispenser
• A120 Automatic nozzle with swivel connection
• On / Off Switch - Controlled By Nozzle
• Integrated nozzle holder with start/stop pump lever
• Intake mesh filter
• Protection Grade: IP55 (Internal Motor)
• Flow rate 90l/min
• 230 Volt AC/DC
• Panther 90 Pump
• K44 Flow meter
• 1' BSP Inlet
• 4m x 3/4' Hose
• Noise level below 75dB
