CONTOIL VZ04 OIL METER
CONTOIL VZ04 OIL METER
The VZO4 oil meter is a low flow model suitable for use with domestic heating oil.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Centre Tank Services Ltd
What makes this METER the right choice?
CONTOIL VZ04 OIL METER

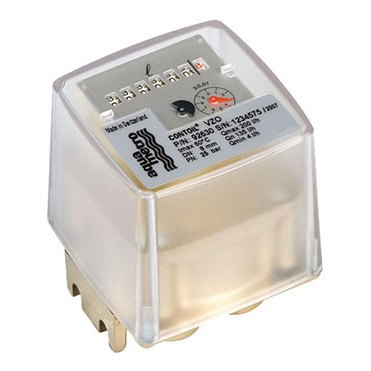

The Contoil VZO 4 Mechanical Oil Meter is an industry recognised mechanical display meter, designed to measure small quantities of fuel oil consumption with great accuracy. The VZO4 oil meter is a low flow model suitable for use with domestic heating oil. This mechanical oil meter can be retrofitted to any existing boiler/burner systems and its versatility allows it to be installed indoors, outdoors, vertically, horizontally and diagonally.
Specification:-
- Mechanical display meter
- Flow rate: 1-50 litre Per Hour (won't work for flow rate less than 1 litre per hour)
- +/-1% accuracy
- 7 digit non-resettable totaliser
- Dial indicating 0.009l
- 1/8' F BSP inlet/outlet
- Maximum operating temperature of +60 Degree C
- Indoor or outdoor use
- Can be retrofitted to existing boiler/burner system
Technical data
Full specifications
| Reference | |
| SKU | CTS2300 |
| EDEL code | EDELP00182267 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
